NEW DESIGN - LOWER PRICE!

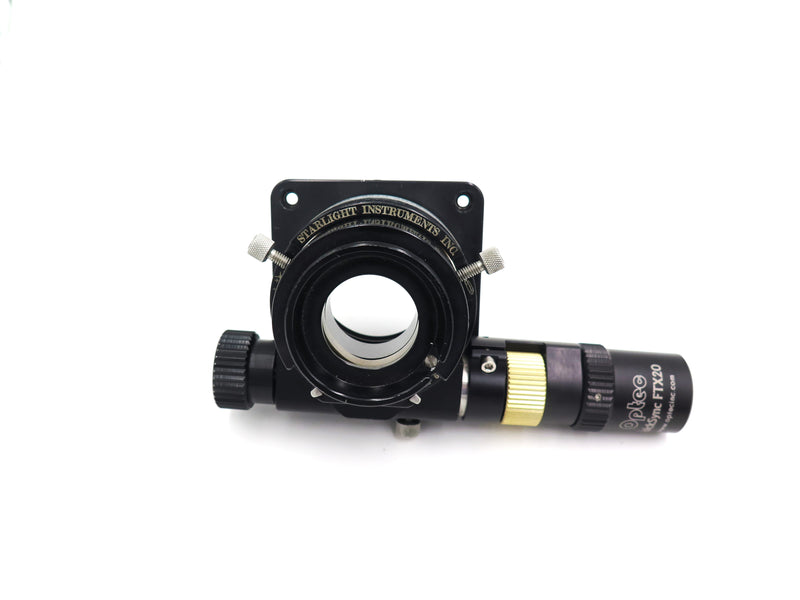

Optec's QuickSync FTX20 motor features our 3rd generation ThirdLynx control circuit. FTX20 fits the Feathertouch 2-inch Crayford style focusers with the same Best-In-Class clutch mechanism of the original QuickSync motors. However, all the control electronics are built into the focus motor.

No external controller is required .

Now with USB-C interface. Includes USB to 12VDC cable.

Optional 12VDC desktop type power supply with 2.1 x 5.5mm barrel plug available.

https://optecinc.us/products/17064-2-1

FeatherTouch FTF2008, FTF2015, FTF2020, FTF2025 focusers,
FeatherTouch FTM series Micros,
FeatherTouch MPA series Micro Pinion Assembly,
Televue-85 f/7 APO Refractor focuser,
TeleVue TV-NP101is, TV-NP127is focusers.
NOTE: 2-inch FeatherTouch rack-and-pinion focusers require the FTX30 motor.

Material:6061 aluminum, anodized black with a gold knob,
Length: 3.4" (87mm)
Width: 1.9" (48mm)
Weight: 5.1oz (145 g)
Step Resolution: approx 1.0 micron per step
Stepper Motor: Bi-polar NPM 15-ohm with 1:25 gearhead
Connectivity: USB A-C cable 1m (3-ft) included in package
Tools Required: 1/16" and 7/64" hex keys (included)
#17070 - USB Power Converter cable included in package
Temperature Sensor: Analog Devices ADT7302 embedded
Current Draw: Maximum draw approx. 350mA

#17064-2.1 12VDC Power supply with wall cord.
#19799 QuickSync/DirectSync clutch lock for permanent remote installations.

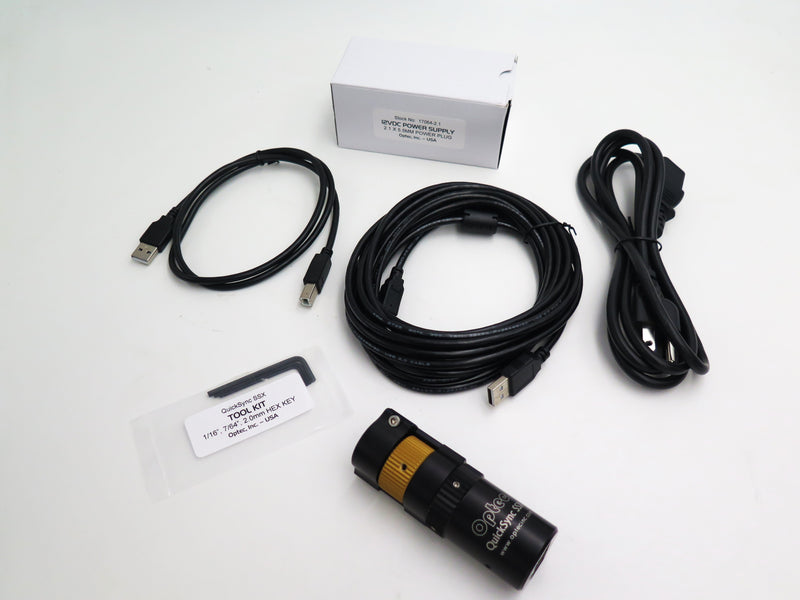

ThirdLynx Motor,
1m (3-ft) USB A-C Cable,
#17070 - USB Power Converter cable
Allen hex wrench tool kit

ThirdLynx controllers are fully compatible with FocusLynx dual-focus control hubs making the FTX20 compatible with all ASCOM, X2, and INDI software.

FocusLynx download page

#19971- ThirdLynx QuickSync FTX20 for FeatherTouch FTF20

Quantity

In Stock: 3
