NEW DESIGN - LOWER PRICE!

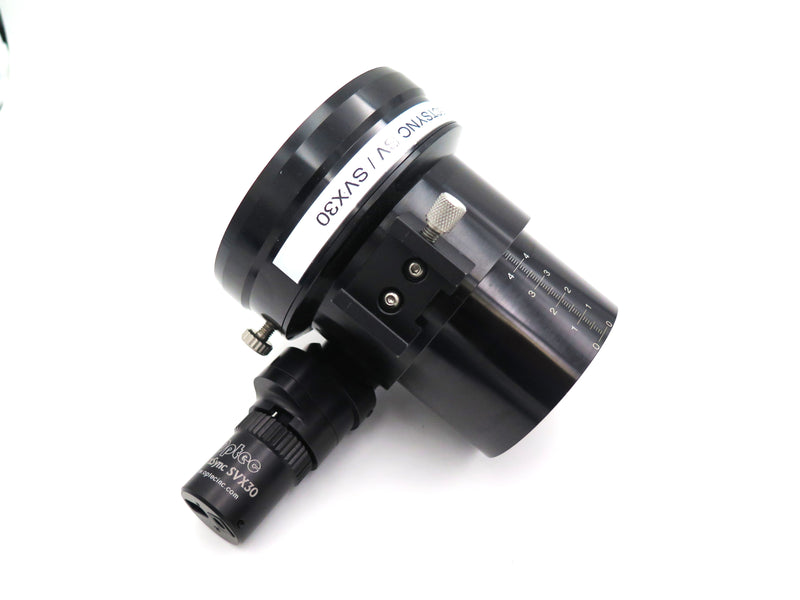

Optec's 3rd generation DirectSync SVX30 motor was developed specifically for the Stellarvue FSV-3B series focusers and features our latest ThirdLynx control circuit.

SVX30 also fits a variety of Stellarvue focusers including SVF25 and SVF30 3-inch focuser. Similar to our original DirectSync SV30 motors with the same Best-In-Class clutch mechanism, the new DirectSync SVX30 includes an all-new integrated control circuit built into the focus motor end cap.

No external controller is required .

USB connectivity and fully compatible with all existing FocusLynx software.

Now with USB-C interface. Includes USB to 12VDC cable.

Optional 12VDC desktop type power supply with 2.1 x 5.5mm barrel plug available.

https://optecinc.us/products/17064-2-1

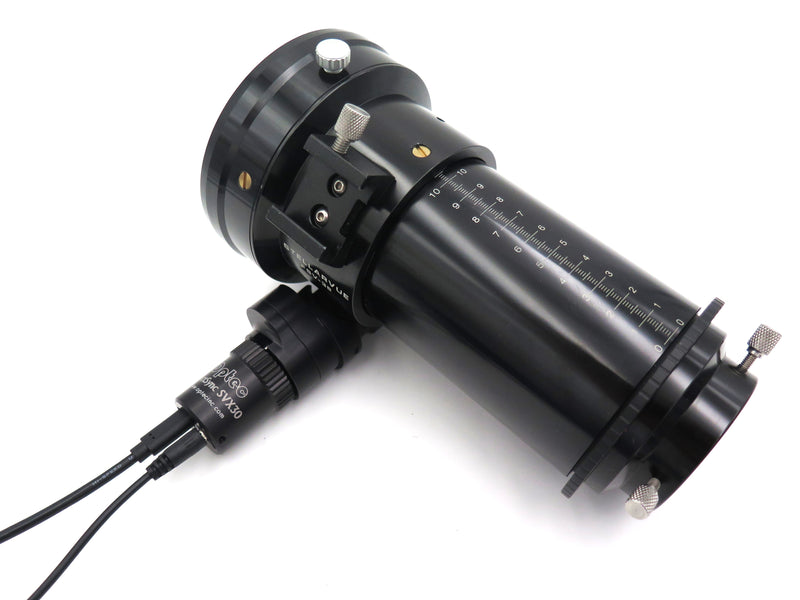

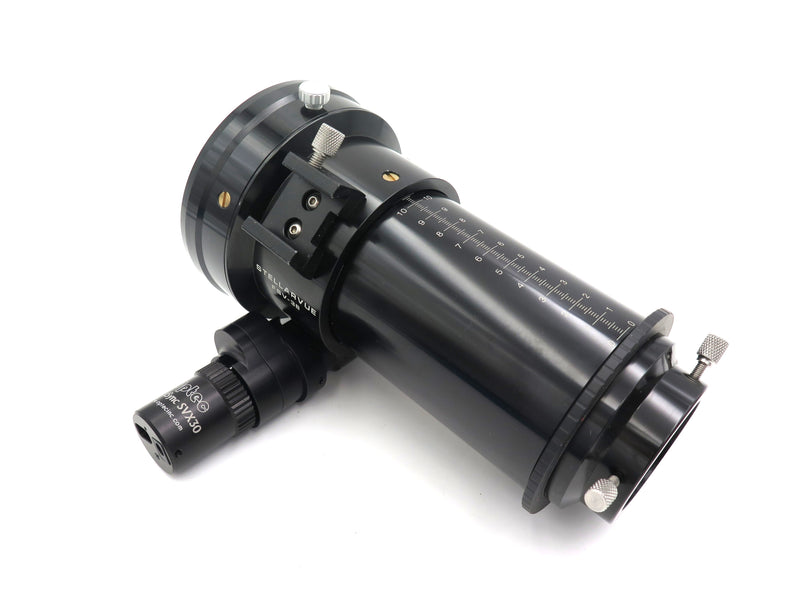

Stellarvue SVF25 2-1/2-inch focuser,
Stellarvue SVF30 3-inch focuser,
Stellarvue -25SV 2-1/2-inch focuser,
Stellarvue -3SV 3-inch focuser,
NOTE: New Stellarvue scopes with SV-F25B focuser require #19976 motor.
Many Stellarvue model telescopes including
SV080ST-25SV,
SV80-3SV,
SVR102T-25SV 102mm Raptor

Also fits many SharpStar focuser with D-shaped pinion block.

Motor Housing Width: 1.9" (48mm),
Overall Length: 3.2" (81.3mm),
Weight: 6.2oz (175 g),
Step Resolution: approximately 1.1 micron per step,
Stepper Motor: Bi-polar NPM 15-ohm with 1:25 gearhead,
Controller: Integrated 3rd generation ThirdLynx,
Connectivity: USB A-C cable 1m (3-ft) included in package,
Tools Required: 1/16" and 7/64" hex keys (included)
#17070 - USB Power Converter cable included in package
Temperature Sensor: Analog Devices ADT7302 embedded
Current Draw: Maximum draw approx. 350mA

#17064-2.1 12VDC Power supply with wall cord.
#19799 QuickSync/DirectSync clutch lock for permanent remote installations.

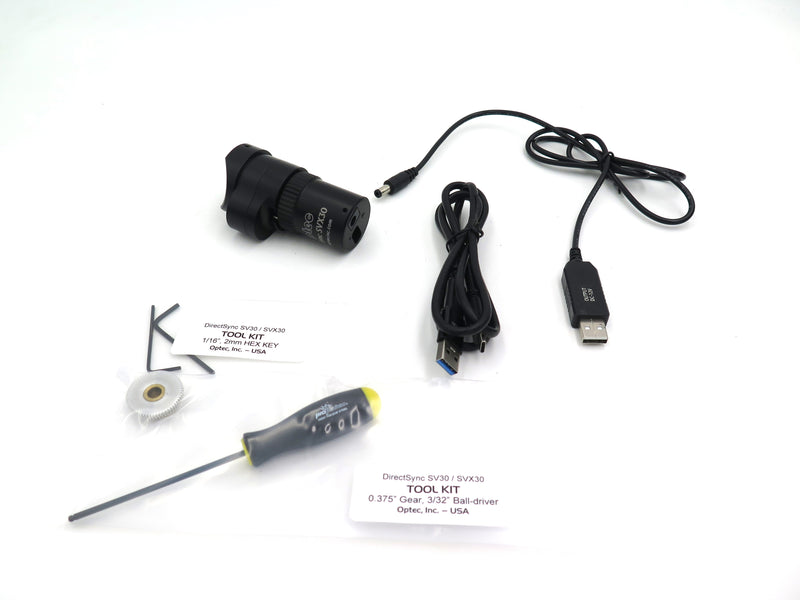

ThirdLynx SVX30 Motor,
1m (3-ft) USB A-C Cable,
#17070 - USB Power Converter cable
Allen hex wrench tool kit with 3/32" ball driver,
60-tooth gear to fit pinion shaft.

ThirdLynx controllers are fully compatible with FocusLynx dual-focus control hubs making the SVX30 compatible with all ASCOM, X2, and INDI software.

FocusLynx download page

#19978- ThirdLynx DirectSync SVX30
