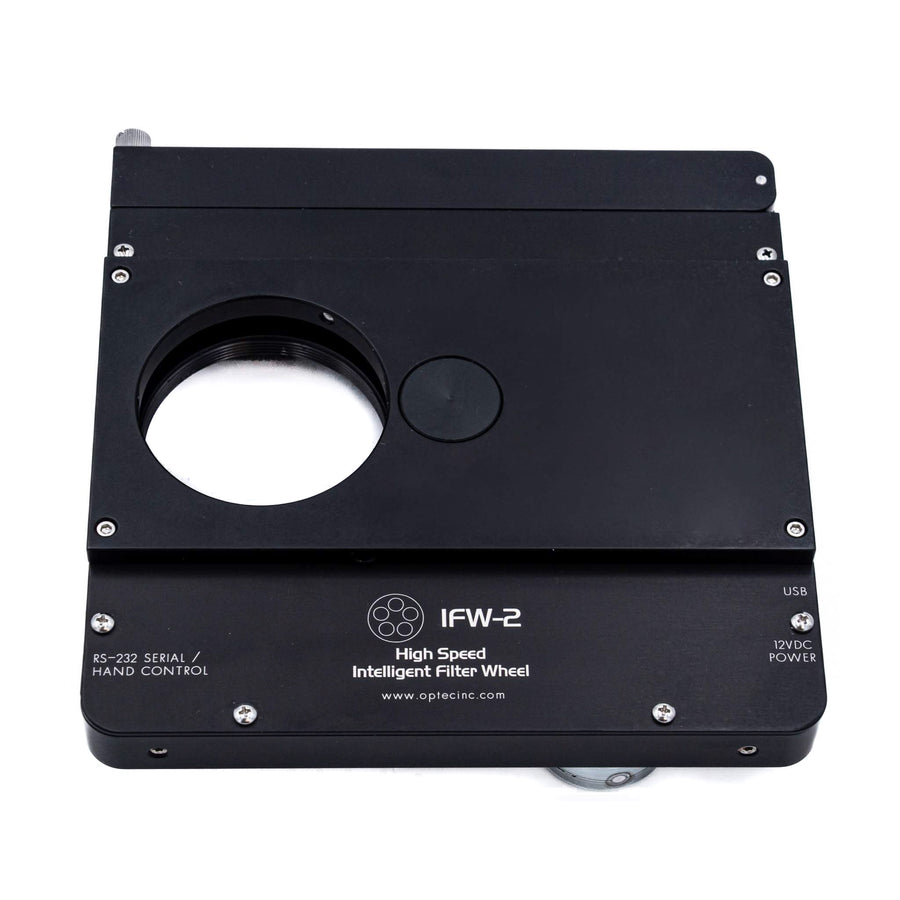

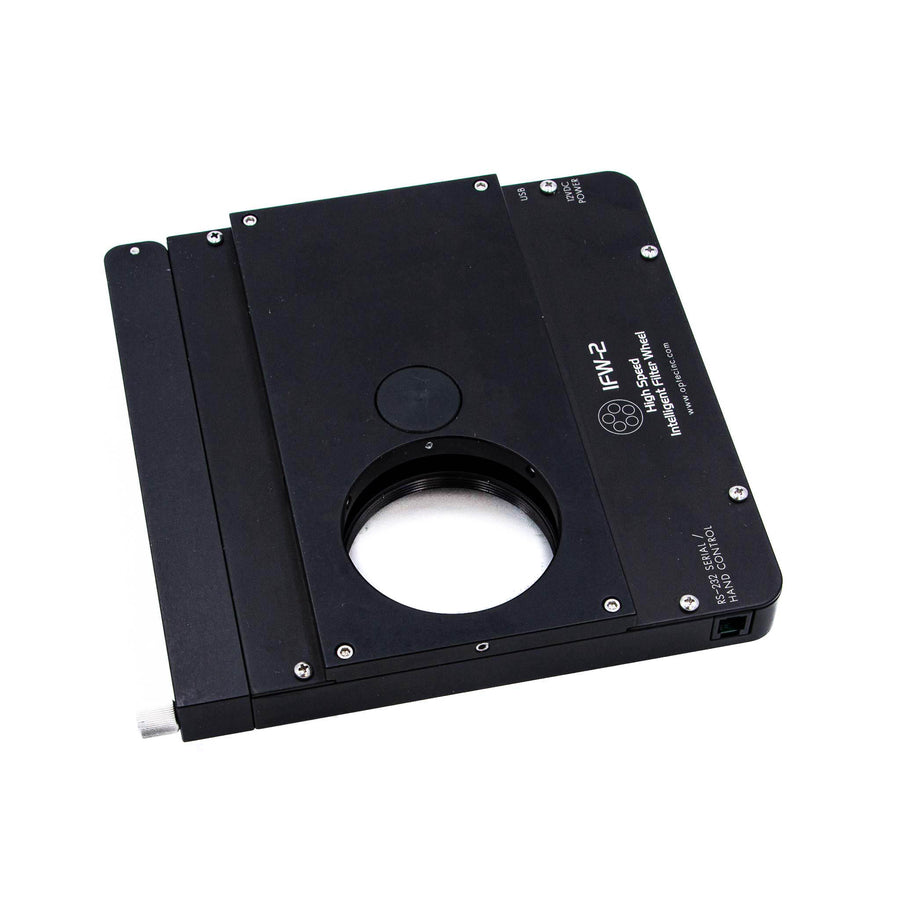

#19355 - IFW 2 FilterWheel
The IFW 2 is Optec’s first High Speed Filter Wheel that supports serial control protocols. Offering both a USB CDC Serial Port and a hardware RS232 Serial Port the IFW 2 can act as a drop in replacement for the IFW.
With a homing time of 2 seconds and .8 seconds to switch to an adjacent filter the IFW 2 can sustain fast imaging cadences. An optional hand controller allows for local access, just like the original IFW.
Available interchangeable wheels include 5 position 55mm / 2 inch, 8 position 25 mm and 7 position 36mm.
An optional external Hand Controller is available for manual control.
- 17356 - 5-position carousel wheel for 50mm filters
- 17358 - 8-position carousel wheel for 25.4mm filters
- 19356 - IFW-2 RS-232 serial communications cable with DB-9 connector.
- 19357 - IFW-2 USB/Serial communications cable with integrated USB converter.
- 19358 - IFW-2 Hand Controller.

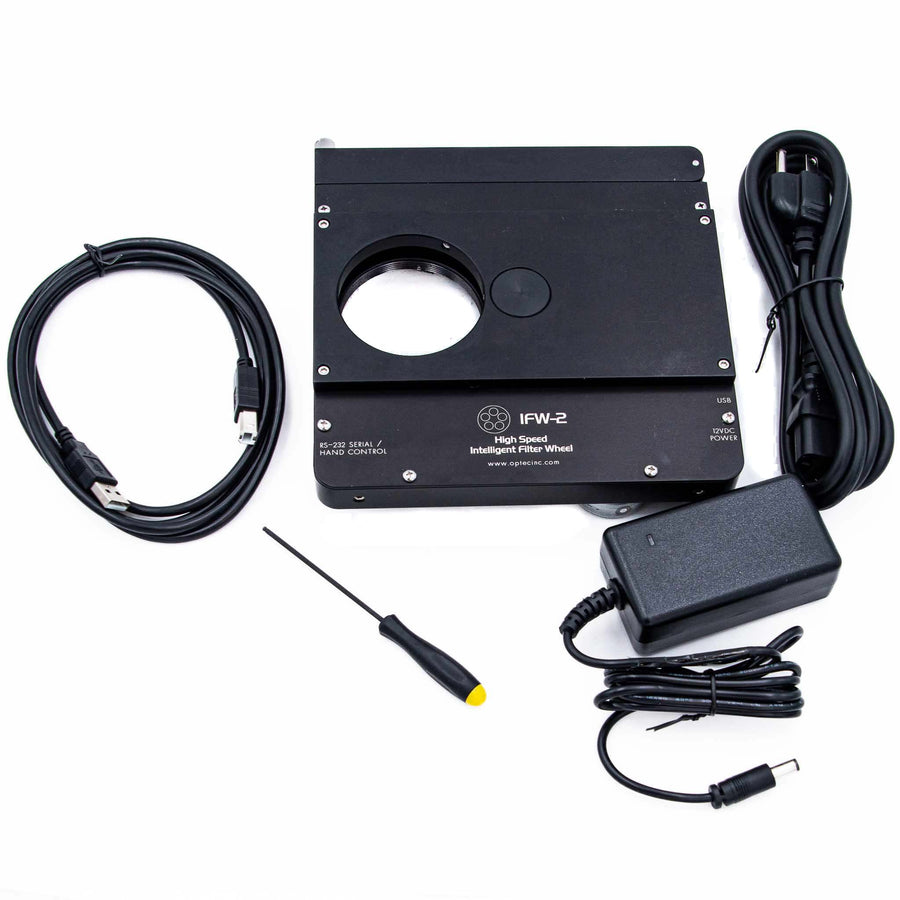

- 19355 - IFW-2 filter selector system
- 12v Power Supply
- USB Cable
-
Shipping Details
- Variant: Default Title
- SKU: 19355
- Weight: 5.0 lb
- Package Dimensions :
- Harmonized Code: 9005.90
- Product Type: Filter Wheel
- Brand: Optec, Inc.
- Collection: Filter Wheels
