#19971- ThirdLynx QuickSync FTX20 for FeatherTouch FTF20

$495.00

Quantity
Out of Stock
Available for backorder, you can contact Optec directly at sales@optecinc.com to reserve a backordered item or order here

NEW DESIGN - LOWER PRICE!

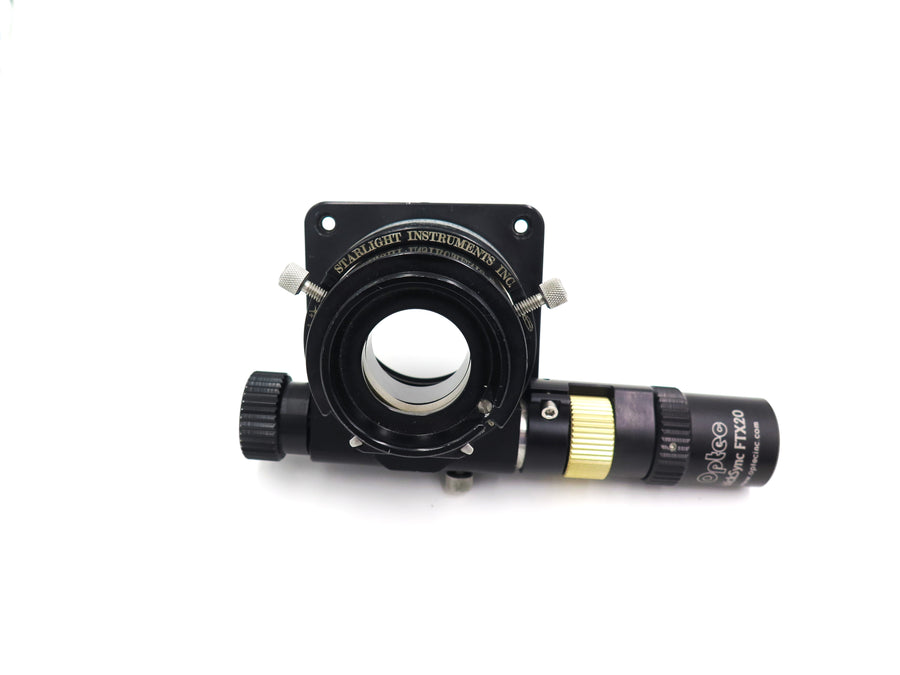

Optec's QuickSync FTX20 motor features our 3rd generation ThirdLynx control circuit. FTX20 fits the Feathertouch 2-inch Crayford style focusers with the same Best-In-Class clutch mechanism of the original QuickSync motors. However, all the control electronics are built into the focus motor.

No external controller is required .


Now with USB-C interface. Includes USB to 12VDC cable.

Optional 12VDC desktop type power supply with 2.1 x 5.5mm barrel plug available.

https://optecinc.us/products/17064-2-1

  • FeatherTouch FTF2008, FTF2015, FTF2020, FTF2025 focusers,
  • FeatherTouch FTM series Micros,
  • FeatherTouch MPA series Micro Pinion Assembly,
  • Televue-85 f/7 APO Refractor focuser,
  • TeleVue TV-NP101is, TV-NP127is focusers.

  • NOTE: 2-inch FeatherTouch rack-and-pinion focusers require the FT20R motor.
  • Material:6061 aluminum, anodized black with a gold knob,
  • Length: 3.4" (87mm)
  • Width: 1.9" (48mm)
  • Weight: 5.1oz (145 g)
  • Step Resolution: approx 1.0 micron per step
  • Stepper Motor: Bi-polar NPM 15-ohm with 1:25 gearhead
  • Connectivity: USB A-C cable 1m (3-ft) included in package
  • Tools Required: 1/16" and 7/64" hex keys (included)
  • #17070 - USB Power Converter cable included in package
  • Temperature Sensor: Analog Devices ADT7302 embedded
  • Current Draw: Maximum draw approx. 350mA


  • #17064-2.1 12VDC Power supply with wall cord.
  • #19799 QuickSync/DirectSync clutch lock for permanent remote installations.

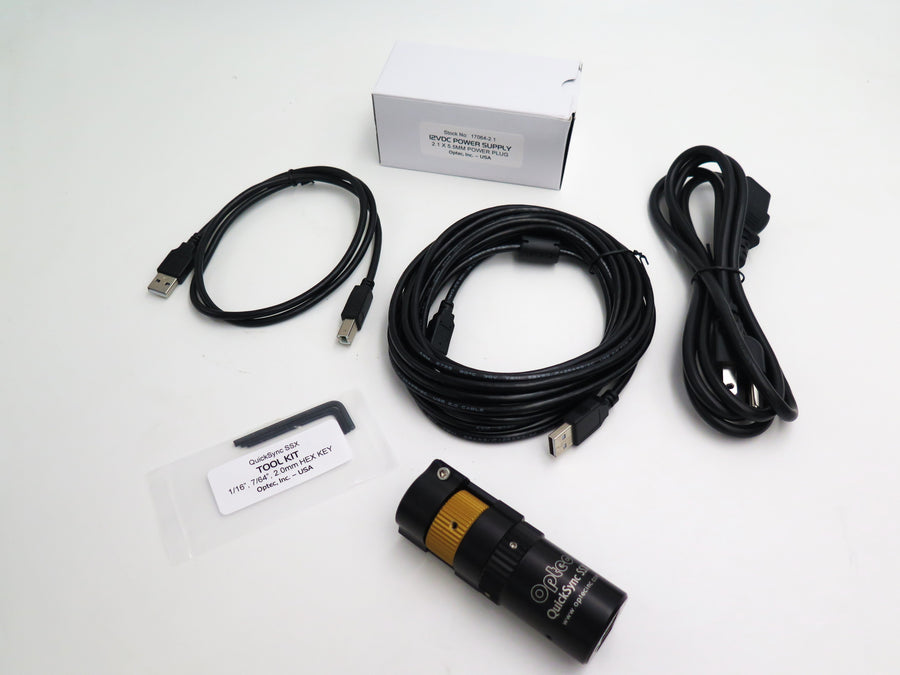

  • ThirdLynx Motor,
  • 1m (3-ft) USB A-C Cable,
  • #17070 - USB Power Converter cable
  • Allen hex wrench tool kit

ThirdLynx controllers are fully compatible with FocusLynx dual-focus control hubs making the FTX20 compatible with all ASCOM, X2, and INDI software.

FocusLynx download page
