#17818 - PlaneWave CDK 14/17/20/24 to OPTEC-3600 Dovetail Mount.

$100.00

Quantity
Out of Stock
Available for backorder, you can contact Optec directly at sales@optecinc.com to reserve a backordered item or order here

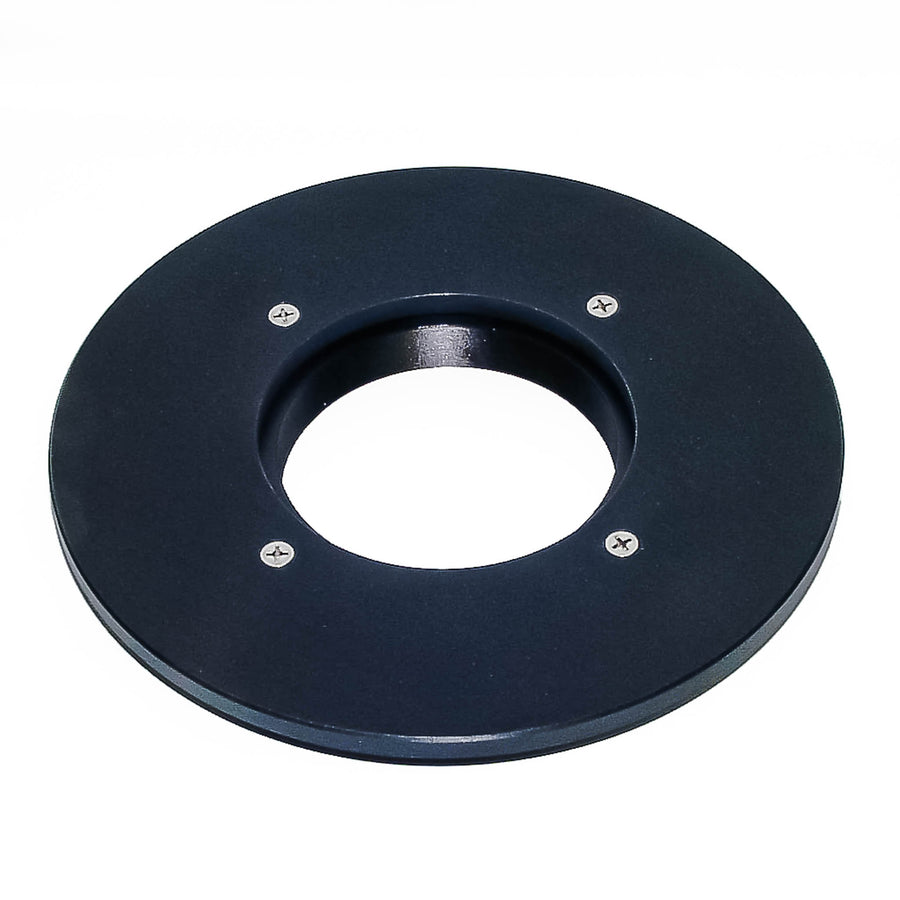

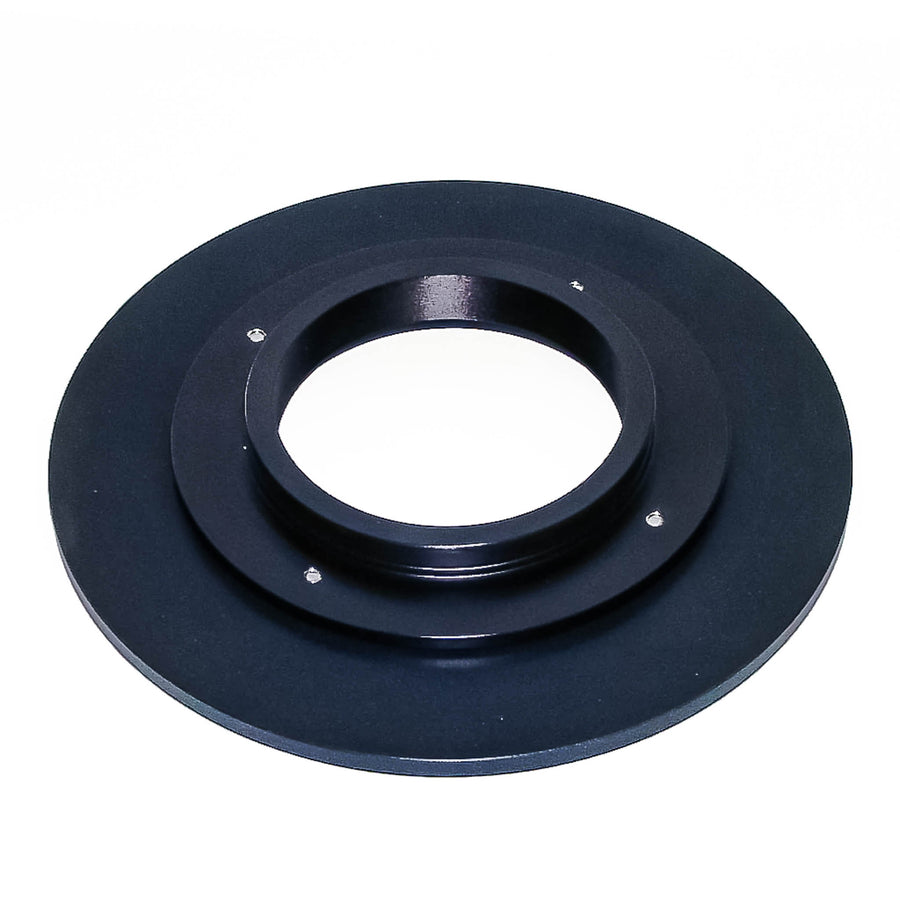

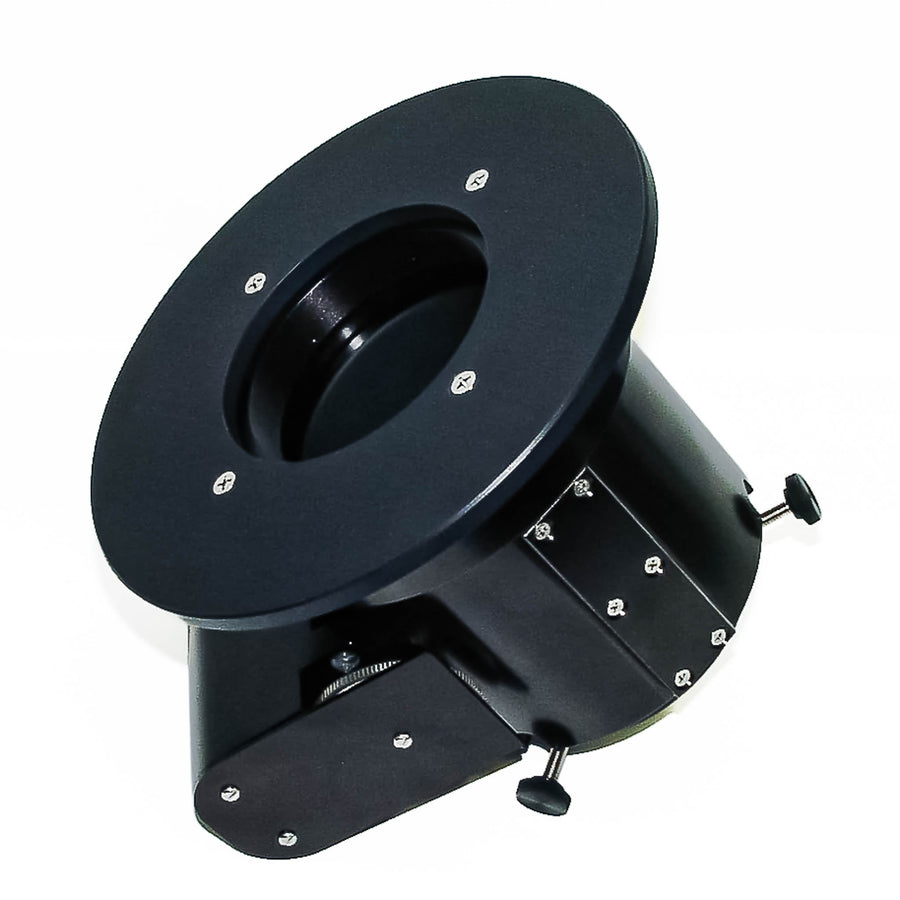

The PlaneWave 14/17/20-inch mount fits behind a pinch-plate on the back of the CDK instrument. This mount presents the OPTEC-3600 dovetail for attachment of any device with an OPTEC-3600 receiver including the TCF-S3, IFW-3, and Pyxis 3" rotator.


The #17818 is typically used in place of the Hedrick focuser. See our #17828 Low Profile mount for attaching the Pyxis 3-inch directly to the Hedrick focuser.

Camera-side Compatibility:
  • TCF-S3 series focuser,
  • Pyxis 3" rotator,
  • Perseus 4-port instrument selector,
  • Any OPTEC-3600 receiver.
  • Overall Height: 0.64" (16.2mm)
  • Clear Aperture: 2.86" (72.6mm)
  • Weight: 1 lb 2 oz (500 g)
  • Back-focus Usage: 0.26" (6.7mm)
