#19630 - Pyxis LE - Camera Field Rotator
Ted Agos Signature Series

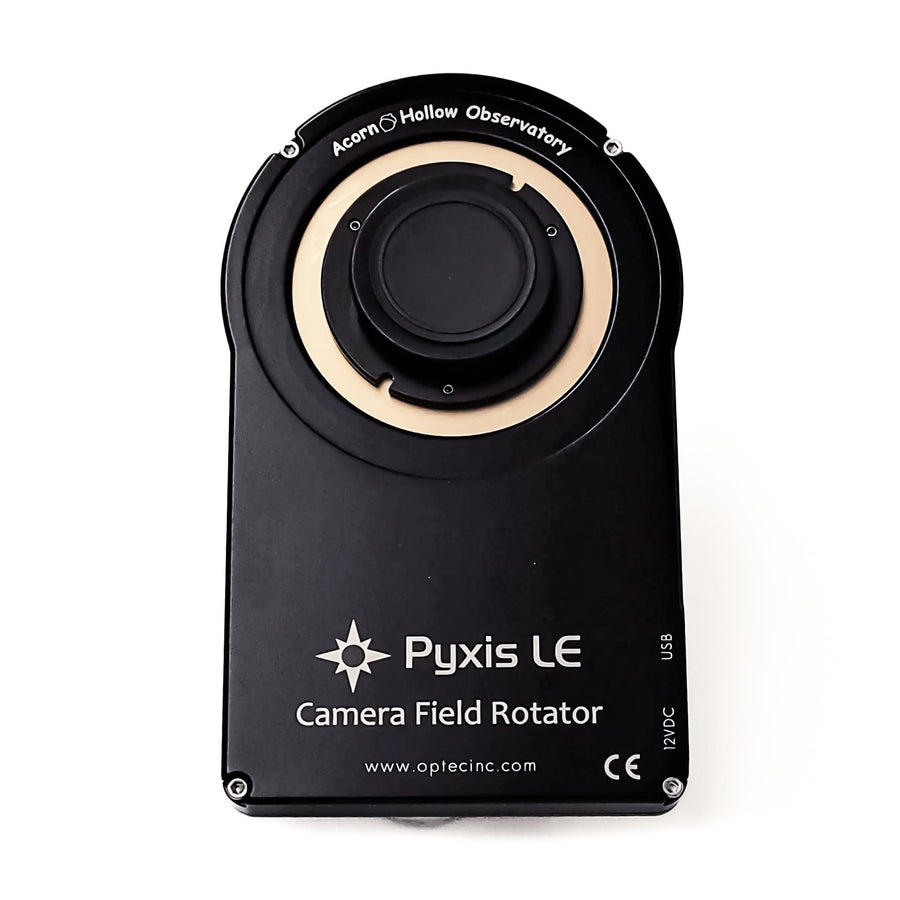

The Optec Pyxis LE is a low profile, lightweight, and versatile Camera Field Rotator with standard mechanical interfaces for ease of connectivity. Based on a design by Ted Agos of the Acorn Hollow Observatory, the Pyxis LE is the thinnest camera field rotator available today!
The Optec Pyxis LE is a low profile, lightweight, and versatile Camera Field Rotator with standard mechanical interfaces for ease of connectivity. Based on a design by Ted Agos of the Acorn Hollow Observatory, the Pyxis LE is the thinnest camera field rotator available today!

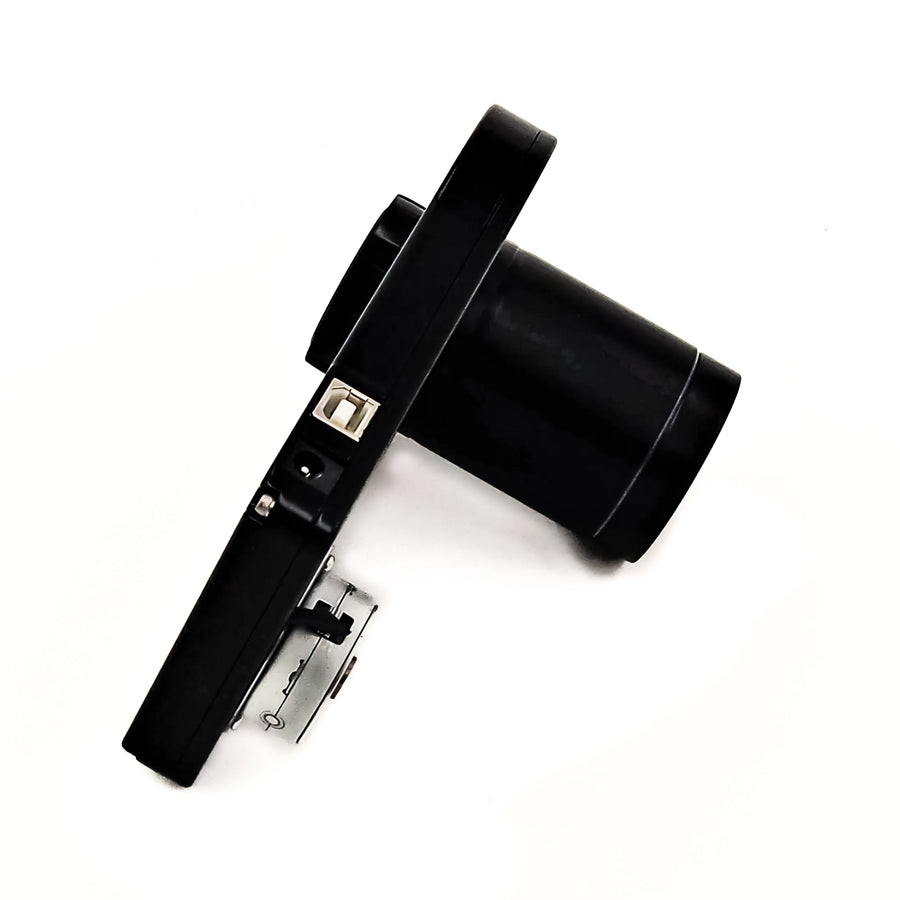

The telescope side of the Pyxis LE is a simple two-inch "push-fit" barrel. The long barrel adapter, just short of 2-1/2 inches, is easily inserted into any 2" focuser such as the Optec TCF-S Temperature Compensating Focuser . Combined with the TCF-S or TCF-Si, the Pyxis LE creates a focuser/rotator combination requiring less than 4-1/2 inches of back-focus.
The camera side of the Pyxis LE is a standard male T-thread. Any T-thread camera, filter wheel, off-axis guider, or industry standard T2 ring can screw directly on to the exit port of the Pyxis LE - no other adapters are required. All of the users existing accessories - T-thread spacers, off-axis guiders, filter wheels, etc. - can be attached directly. With the Pyxis LE, the confusion typically surrounding adapters is eliminated since the Pyxis LE is ready to use out-of-the-box. Simply attach your camera, slip into a 2-inch focuser, and you're ready to go.
- Physical Size: 3.14" x 4" x 6.5" (80mm x 102mm x 165mm)
- Clear aperture: 1.515" (38.5mm)
- Weight: approx. 1.1 lb. (.5 kg)
- Telescope Adapter: 2" barrel adapter for any 2" focuser
- Camera Adapter: T-thread
- Back-Focus: .68" (17.3mm)
- Resolution: 0.050 degrees/step
- Power: 12 VDC 1 Amp (12 Watts max)
- Communications Interface: USB 2.0
- Software Interface: Pyxis LE-Control and ASCOM-compliant driver
-
Shipping Details
- Variant: Default Title
- SKU: 19630
- Weight: 4.0 lb
- Package Dimensions : 10 X 8 X 6
- Harmonized Code: 9005.80
- Product Type: Camera Rotator
- Brand: Optec, Inc.
- Collection: Rotators
