#17416 - Universal OPTEC-2400 Mount
#17416 - Universal Mounting Plate to OPTEC-2400 Telescope Mount

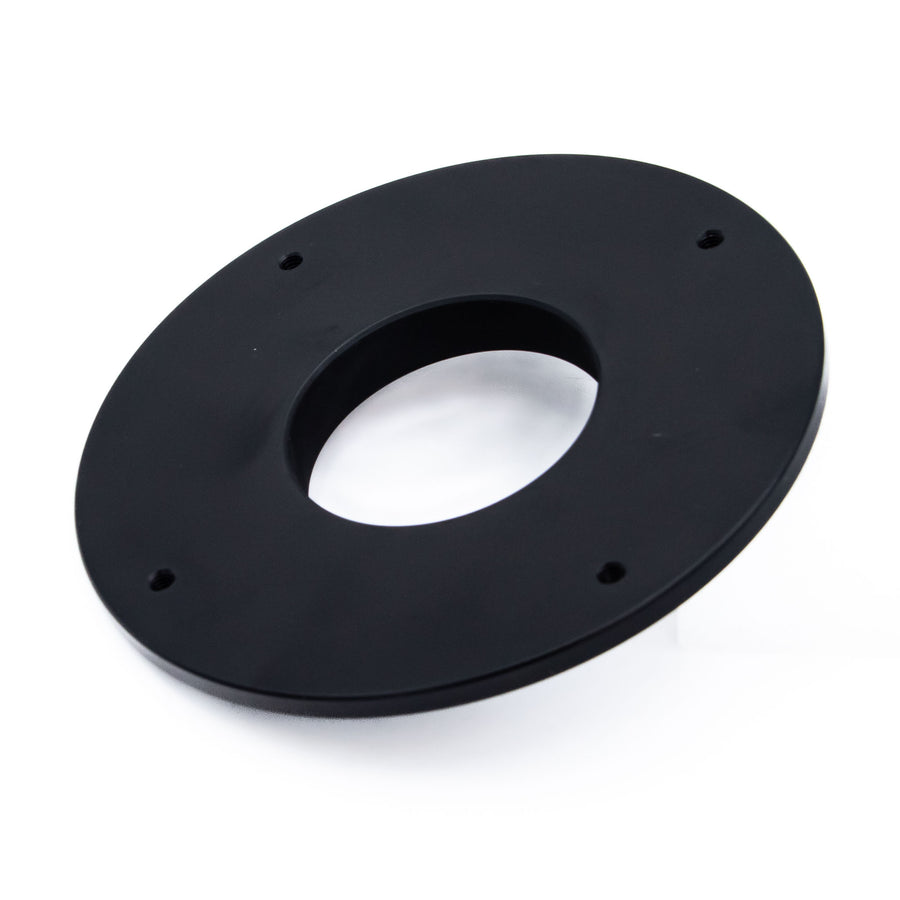

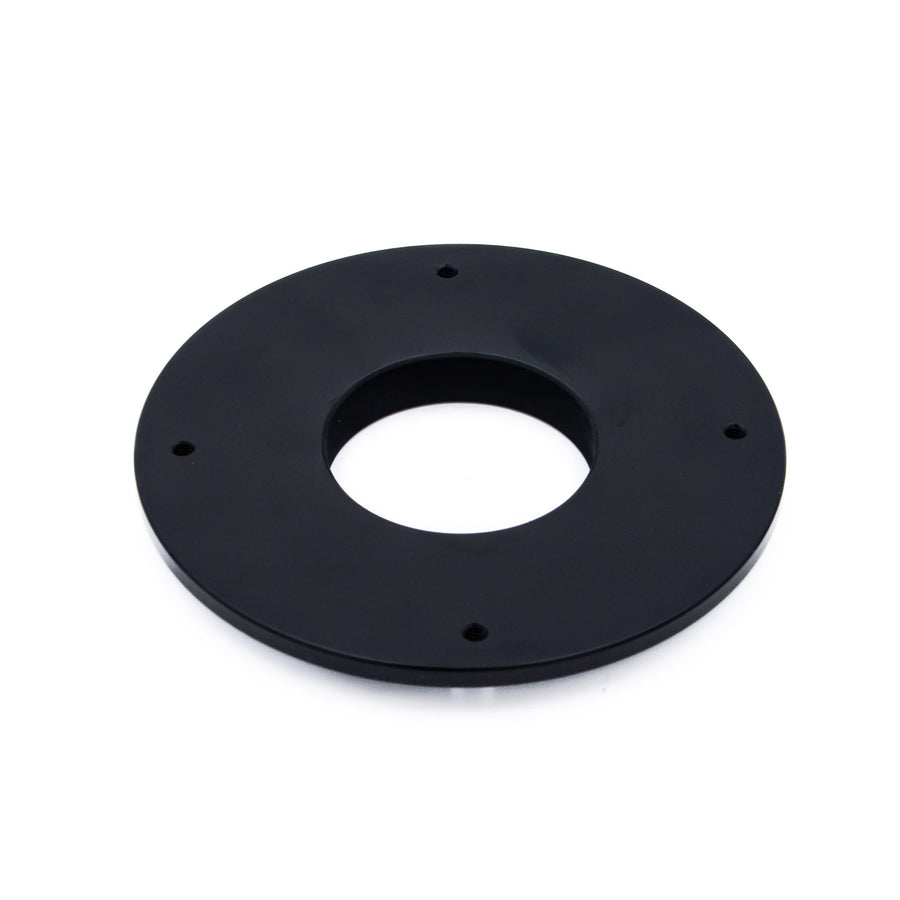

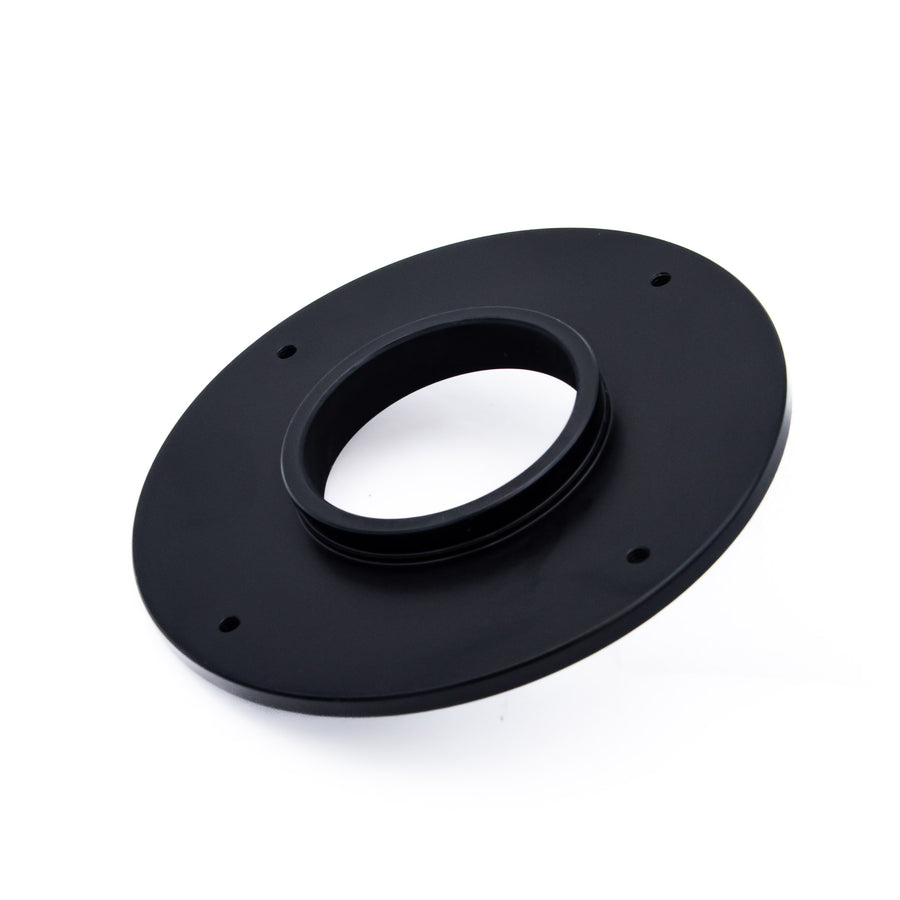

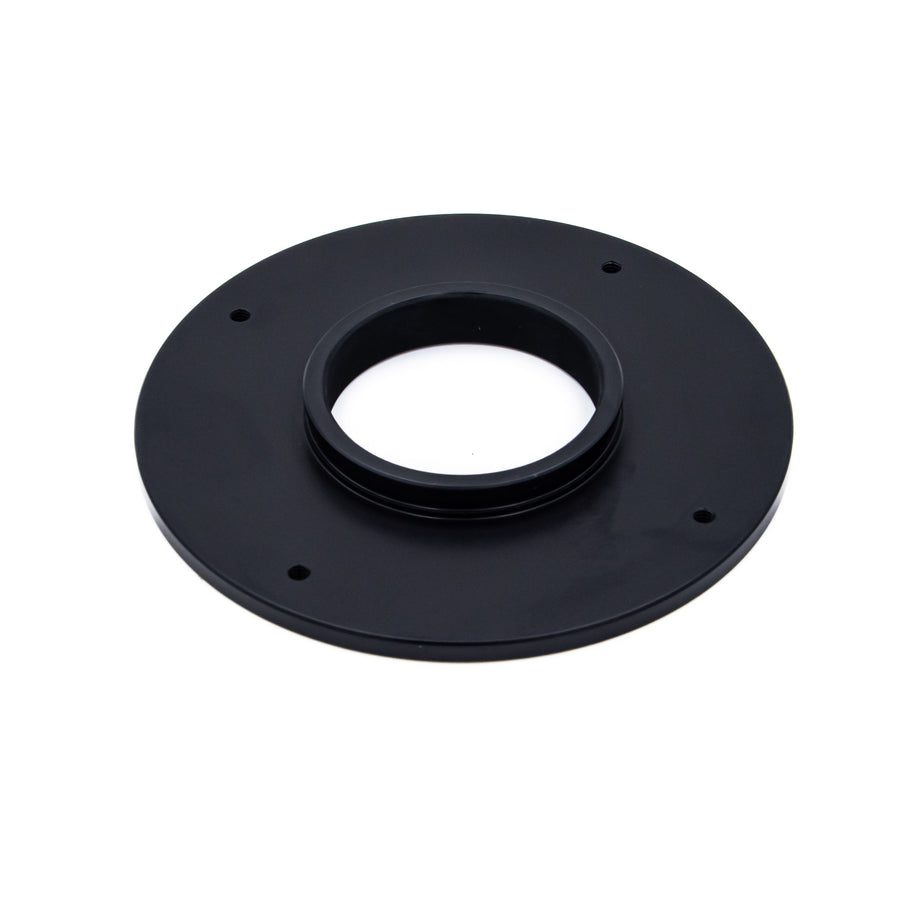

The Universal OPTEC-2400 mounting plate is a flat, machinable plate with the male OPTEC-2400 2.4" dovetail for attachment of the TCF-S focuser, IFW filter wheel, or any device with a mating 2.4" receiver.
| Outside Diameter: | 4.95" (126mm) |
|
Overall Height: |
0.52" (13.3mm) |
| Clear Aperture: | 2.04" (51.8mm) |
| Weight: | 5.4 oz (155 g) |
| Back-Focus Usage: | 0.20" (5.0mm |
#17416 Dimensional Drawing
#17416 3D PDF- Newtonian telescopes having a flat surface for mounting.
- Any telescope with a flat mounting surface.
-
Shipping Details
- Variant: Default Title
- SKU: 17416
- Weight: 1.0 lb
- Package Dimensions :
- Harmonized Code: 9005.80
- Product Type: Adapter
- Brand: Optec, Inc.
