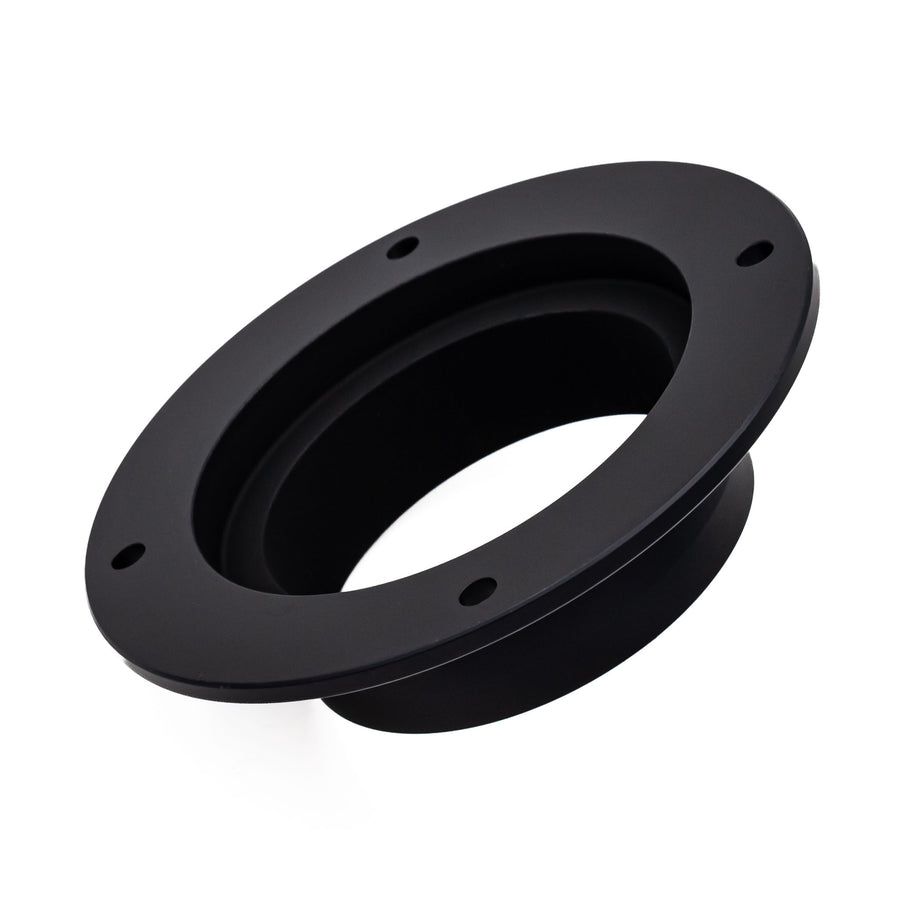

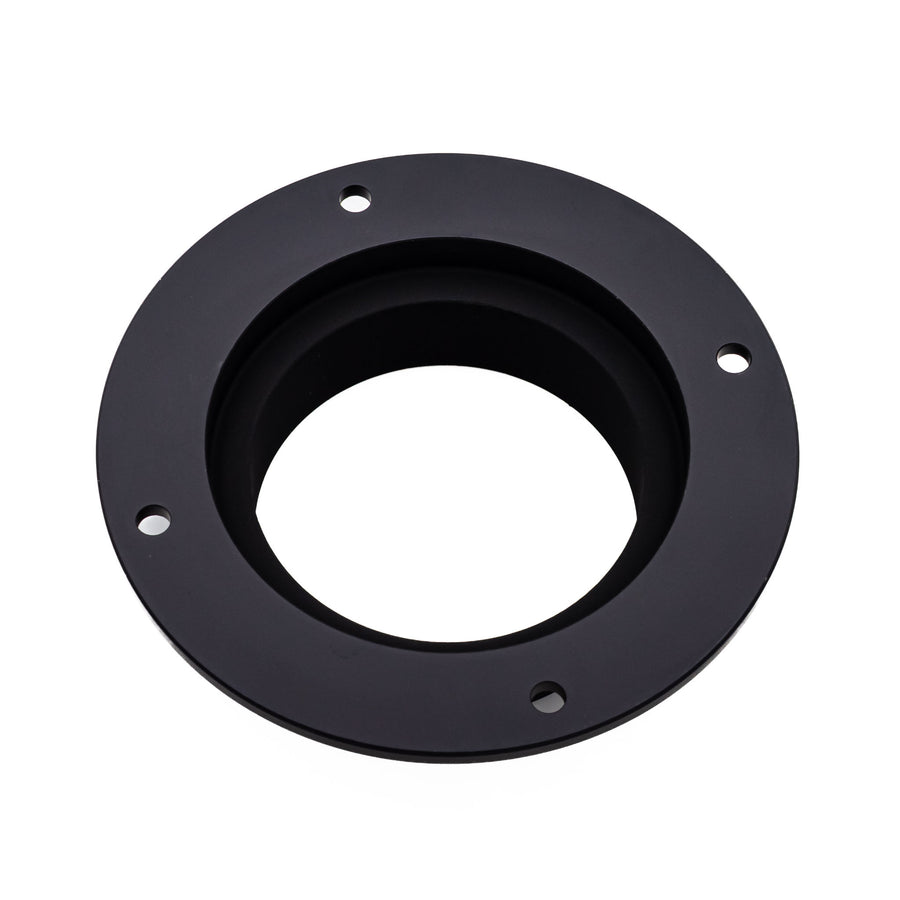

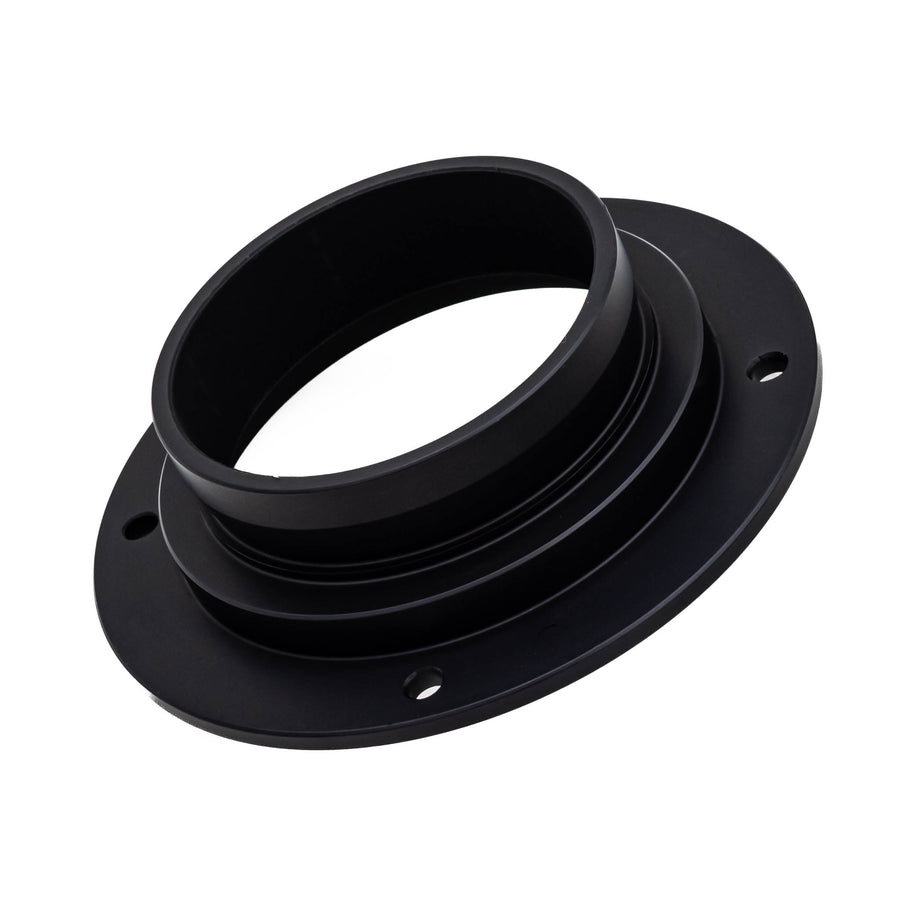

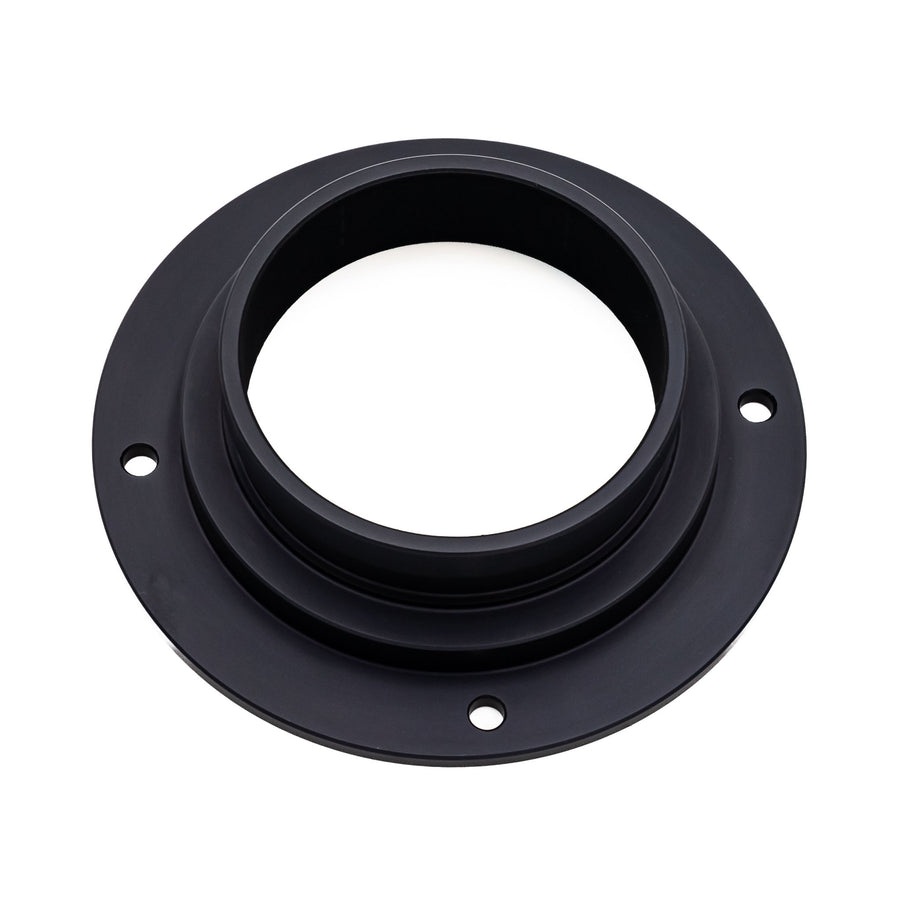

The #17835 3-inch PlaneWave SecureFit mount bolts directly onto PlaneWave camera systems with 12.5" 4-bolt patterns and presents an OPTEC-3000 dovetail to attach to any product with an OPTEC-3000 receiver, including the TCF-S3, IFW-3, and Pyxis 3" rotator. When used with the #17826 adapter, these two adapters can be used as a substitute for the PlaneWave 4.8" SecureFit spacer.
- Outside Diameter: 4.75" (120.6mm)
- Overall Height: 1.25" (31.8mm)
- Clear Aperture: 2.7" (68.6mm)
- Weight: 4.96 oz (140.6 g)
- Back-focus Usage: 0.5" (12.7mm)
- Telescope Side Connection: OPTEC-3000 Dovetail
- Camera Side Connection:: PlaneWave 12.5" Secure Fit
