#19768 - QuickSync SV20


In Stock: 1

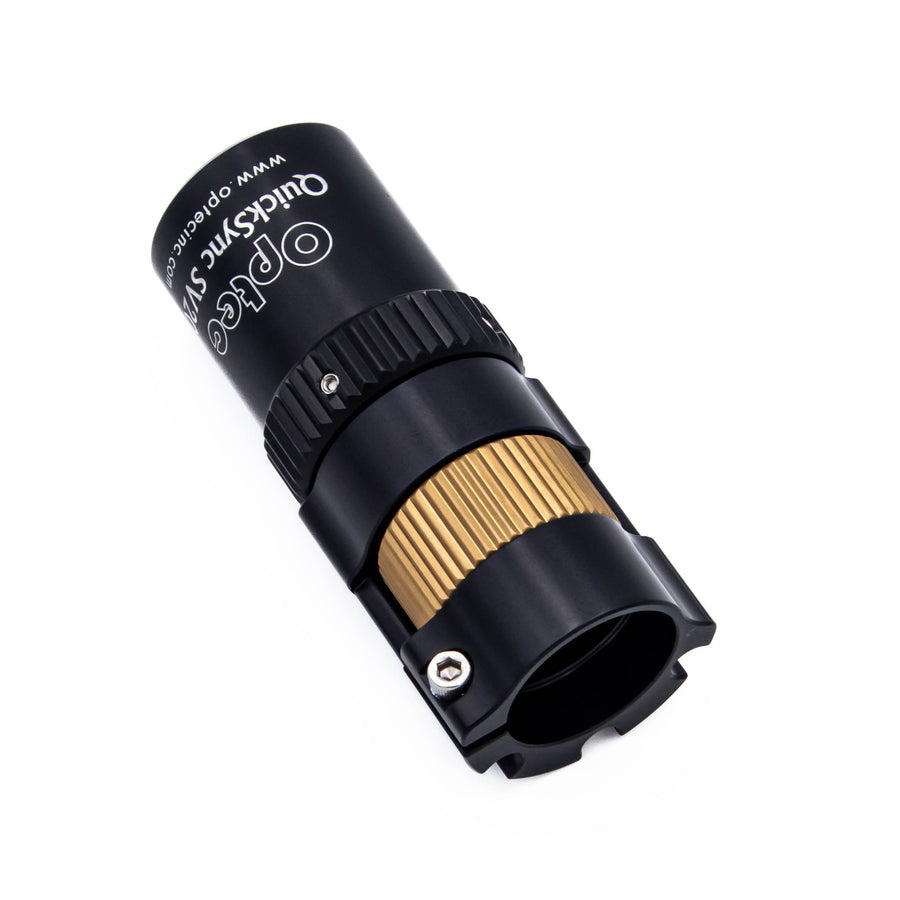

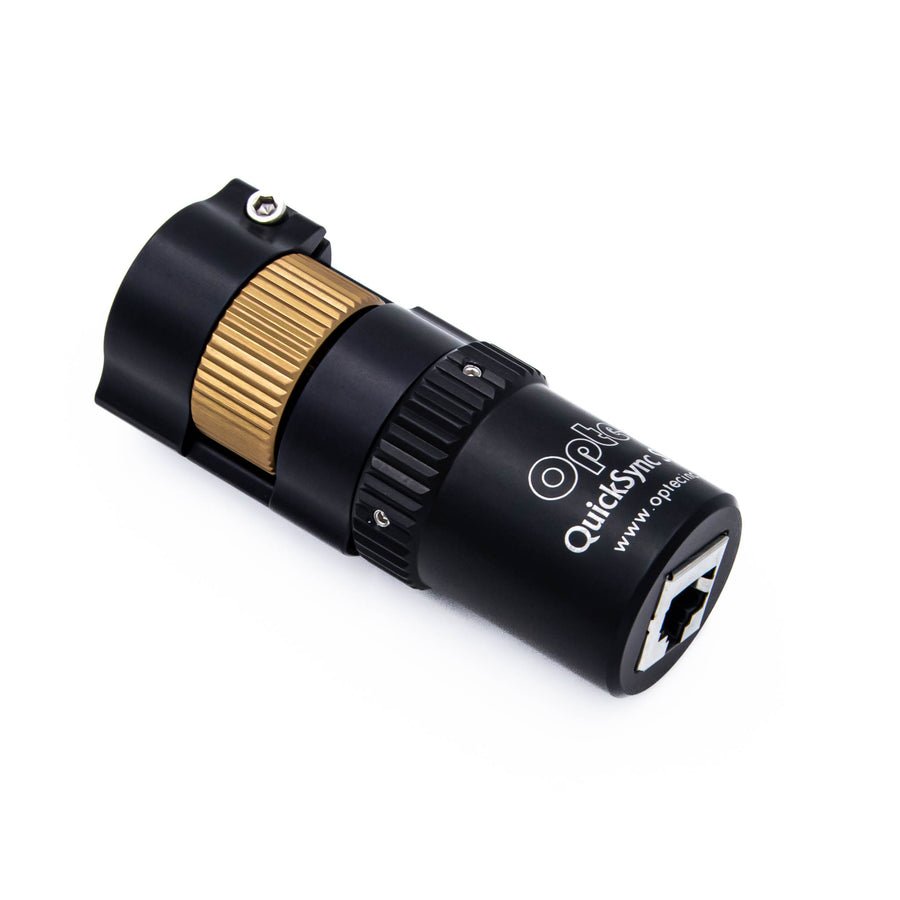

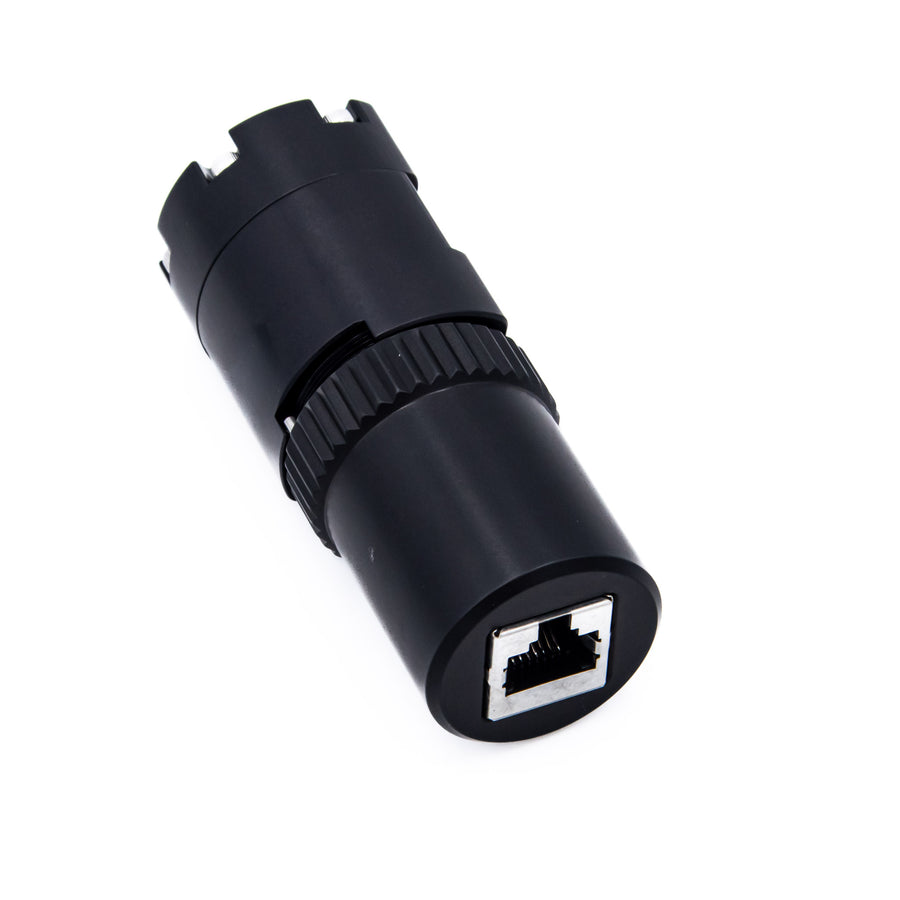

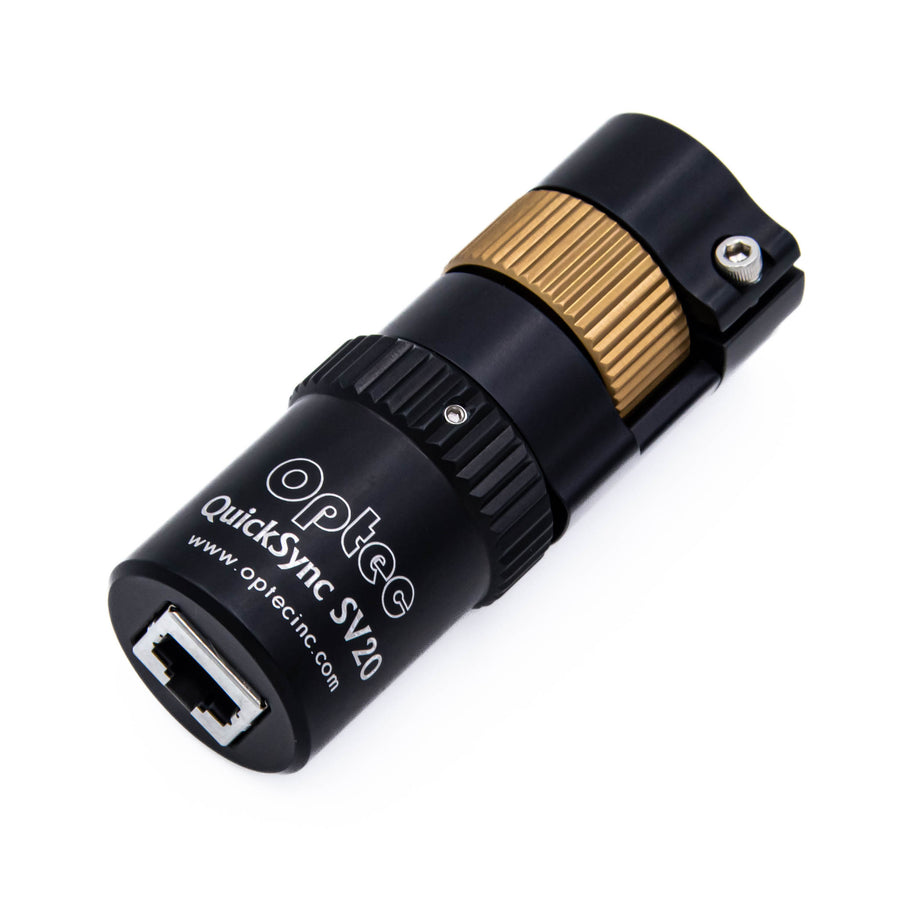

The FocusLynx QuickSync SV20 system is an aftermarket add-on for the Stellarvue SVF20 2-inch Focuser. The QuickSync SV20 motor can be added to any existing FocusLynx hub system . The QuickSync SV20 motor is easy to install and provides a digital focusing solution that also allows manual focus when at the telescope.

This version requires the external Optec FocusLynx controller . If you would prefer the fully integrated solution consider the ThirdLynx model .

For more add on accessories including the FocusLynx Controller, Hand Controller, and WiFi see the FocusLynx Accessories .

  • Stellarvue SVF20 2-inch native focuser,
  • Teleskop Services TS-Optics Photoline 60-mm f/5.5 FPL53 APO
  • (thanks to Geoff Crow for confirming fit and function),
  • Other APO's using the same style focuser (see Instructions below ).
  • Motor Housing Width: 1.9" (48mm)
  • Overall Length: 3.35" (85mm)
  • Weight: 5.2 oz (150 g)
  • Step Resolution: 1.1 micron per step
  • Stepper Motor: Bi-polar NPM 15-ohm with 1:25 gearhead

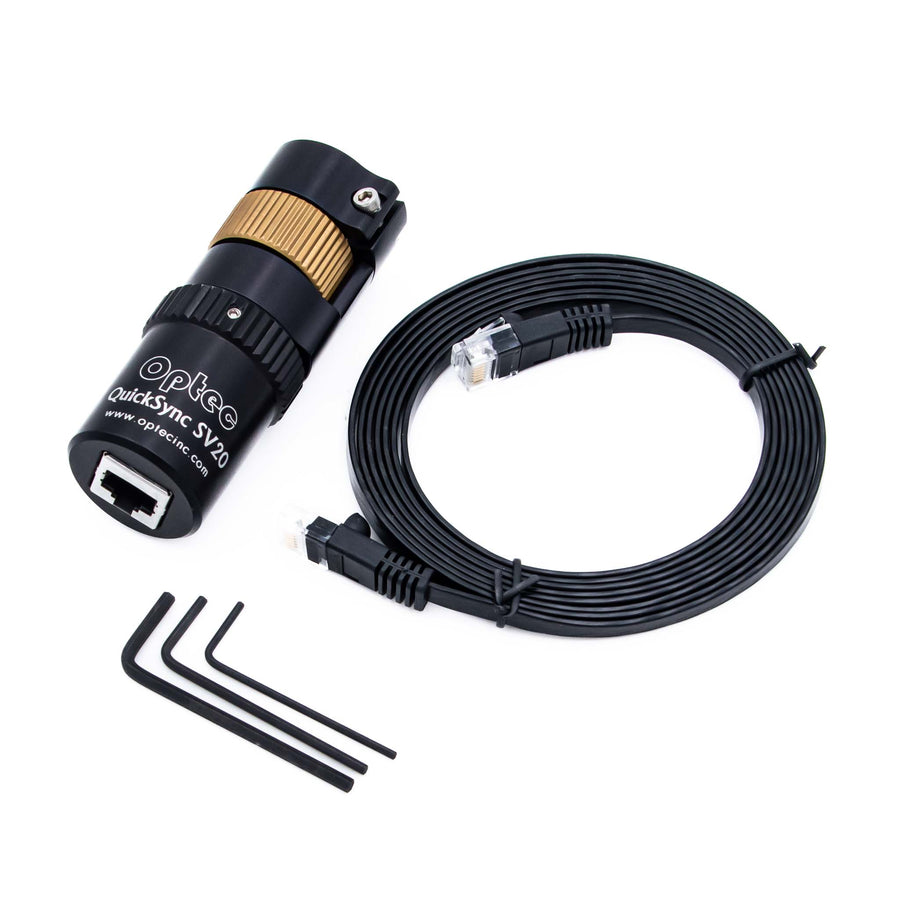

  • Connection to FocusLynx: Standard Ethernet cable (included)
  • Temperature Probe: Integrated Digital Sensor type TMP04FT9Z
  • Current Draw: Maximum draw approx. 350mA

FocusLynx controllers are usable with Alpaca, ASCOM, X2, and INDI software.

FocusLynx download page
