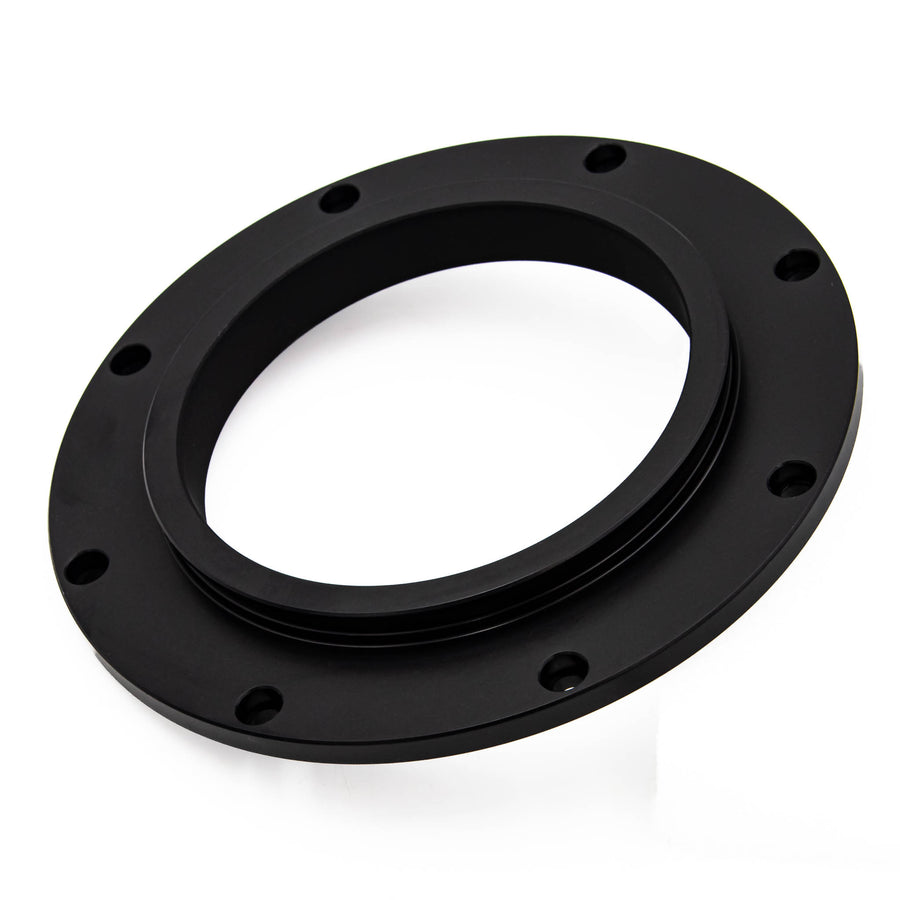

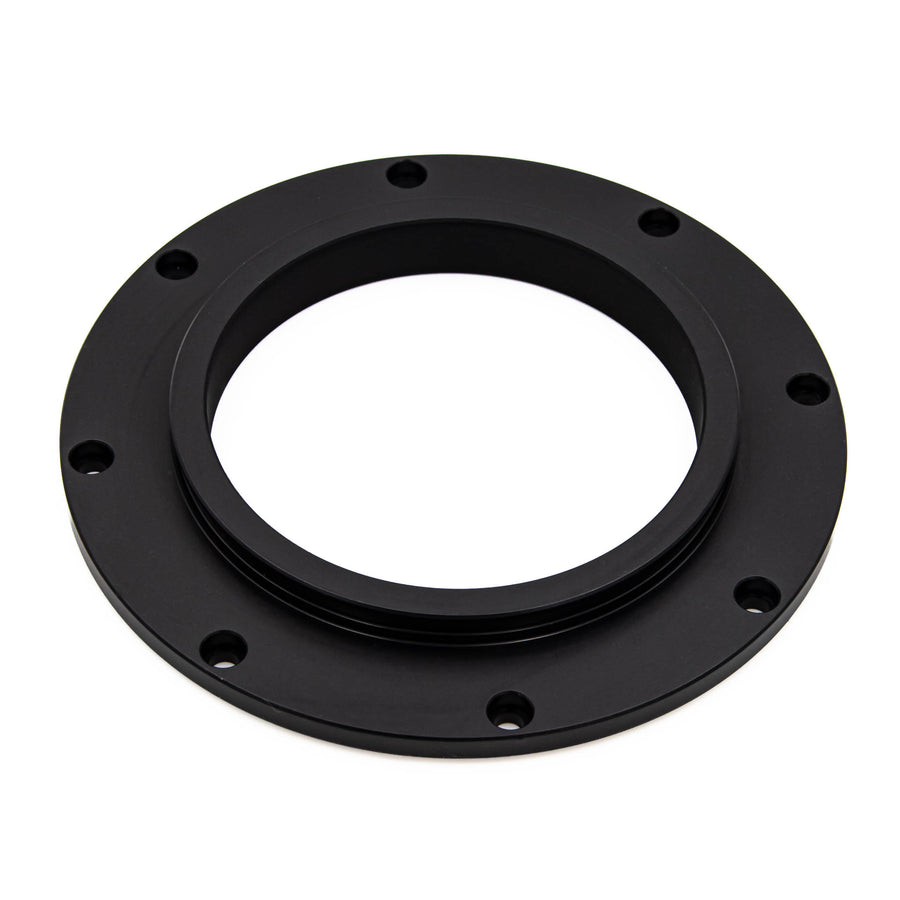

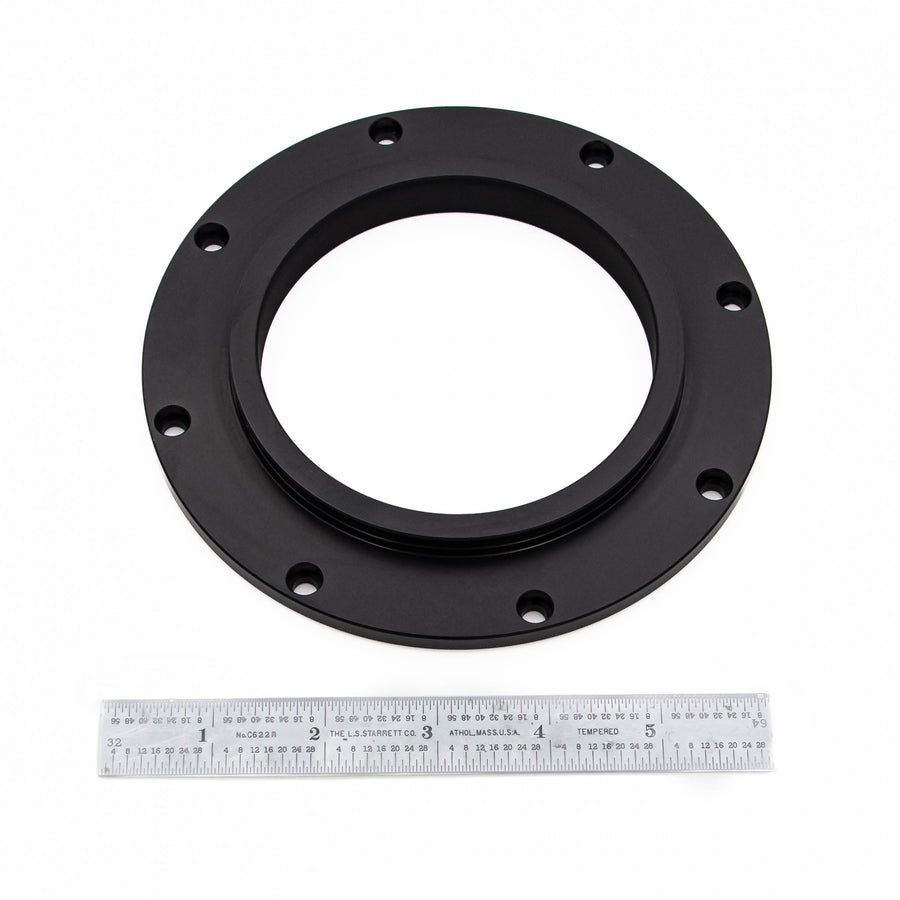

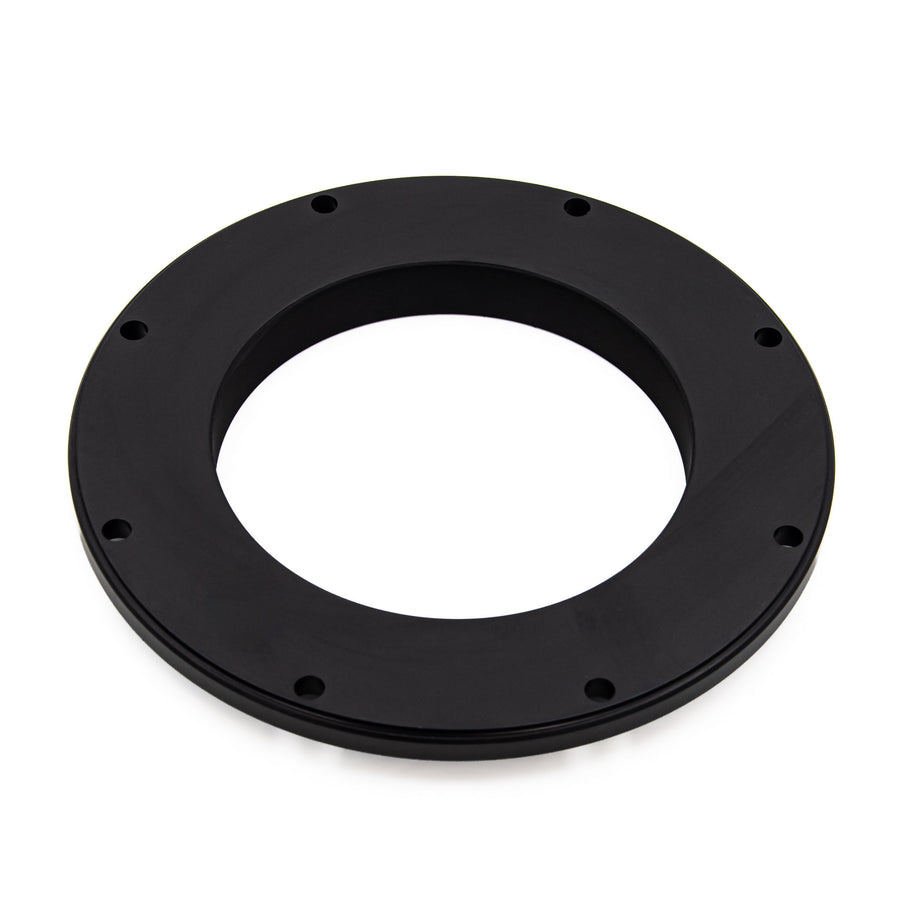

The #19840 Ceravolo CDK mount allows the Limited Back-Focus Edition of the TCF-S3 to attach to the Ceravolo CDK line of astrograph telescopes.
This adapter can also be modifed for use as a Universal OPTEC-43000 dovetail mount. Easily drilled or machined.
- Outside Diameter: 6" (152.3mm)
- Overall Height: 0.61" (15.5mm)
- Clear Aperture: 3.74" (95mm)
- Weight: 8.32 oz (235.9 g)
- Back-focus Usage: 0.25" (6.35mm)
- Telescope Side Connection: Ceravolo 300 Astrograph
- Camera Side Connection:: OPTEC-4300 Dovetail
- Gemini Focusing Rotator,
- TCF-Lynx3 Gen2 Focuser,
- Any OPTEC-4300 receiver adapter.
