#19979- ThirdLynx DirectSync SSX35

$525.00

Quantity
In Stock: 3

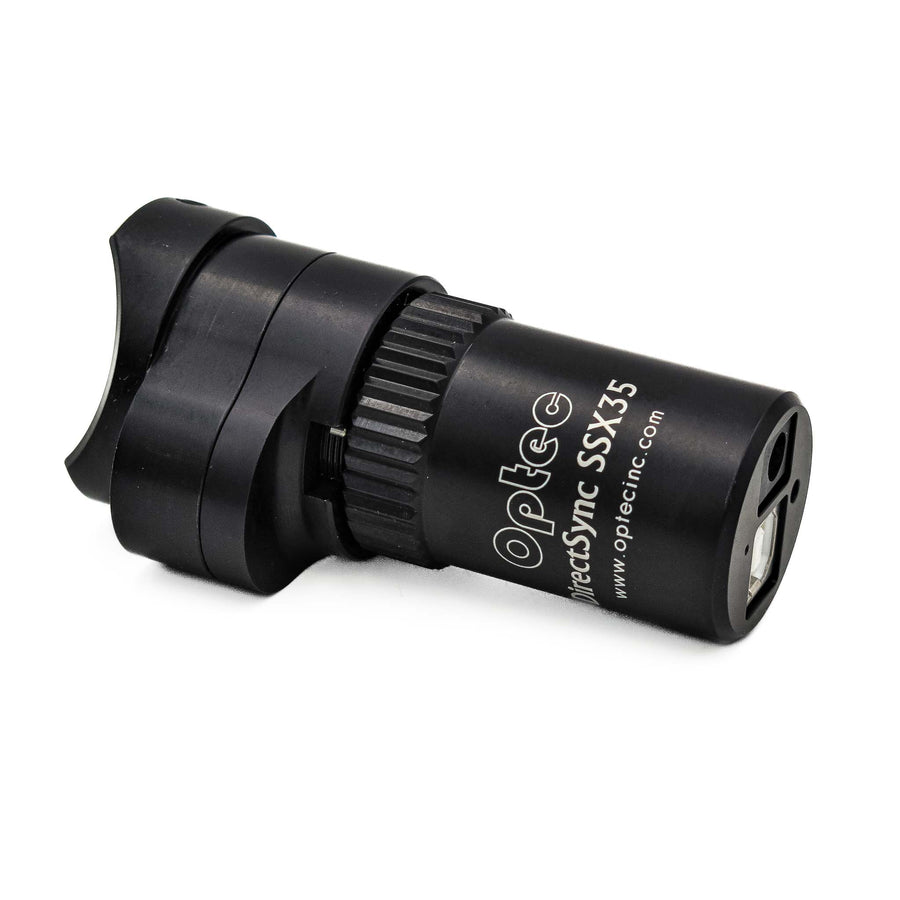

Optec's DirectSync SSX35 motor was developed specifically for the Sharpstar 3.4-inch series focusers and features our ThirdLynx control circuit.

SSX35 fits the Askar 107PHQ and 130PHQ astrographs as well as ZWO's FF107 APO and FF130 APO telescopes. Like all our add-on focus motors, the SSX35 features the Best-In-Class clutch mechanism and also includes the fully integrated ThirdLynx control circuit built into the focus motor end cap.

No external controller is required .


USB connectivity and fully compatible with all existing FocusLynx software.

  • Askar 107PHQ
  • Askar 130PHQ
  • Askar FRA500
  • ZWO FF107-APO
  • ZWO FF130-APO
  • Motor Housing Width: 1.9" (48mm)
  • Overall Length: 3.55" (90mm)
  • Weight: 6.0 oz (165 g)
  • Step Resolution: 1.1 micron per step
  • Stepper Motor: Bi-polar NPM 15-ohm with 1:25 gearhead
  • Controller: Integrated ThirdLynx
  • Connectivity: USB 2.0 A-B cable (included)
  • Temperature Sensor: Analog Devices ADT7302 embedded
  • Input Power: 12-volts DC, 2.5 x 5.5mm plug
  • Current Draw: Maximum draw approx. 350mA
  • # 17070 - USB Power Converter cable.
  • ThirdLynx Motor
  • 3’ USB Cable
  • 15’ USB Cable
  • Allen Wrench
  • Power Supply with cord

ThirdLynx controllers are fully compatible with FocusLynx dual-focus control hubs making the FTX40 compatible with all ASCOM, X2, and INDI software.

FocusLynx download page
