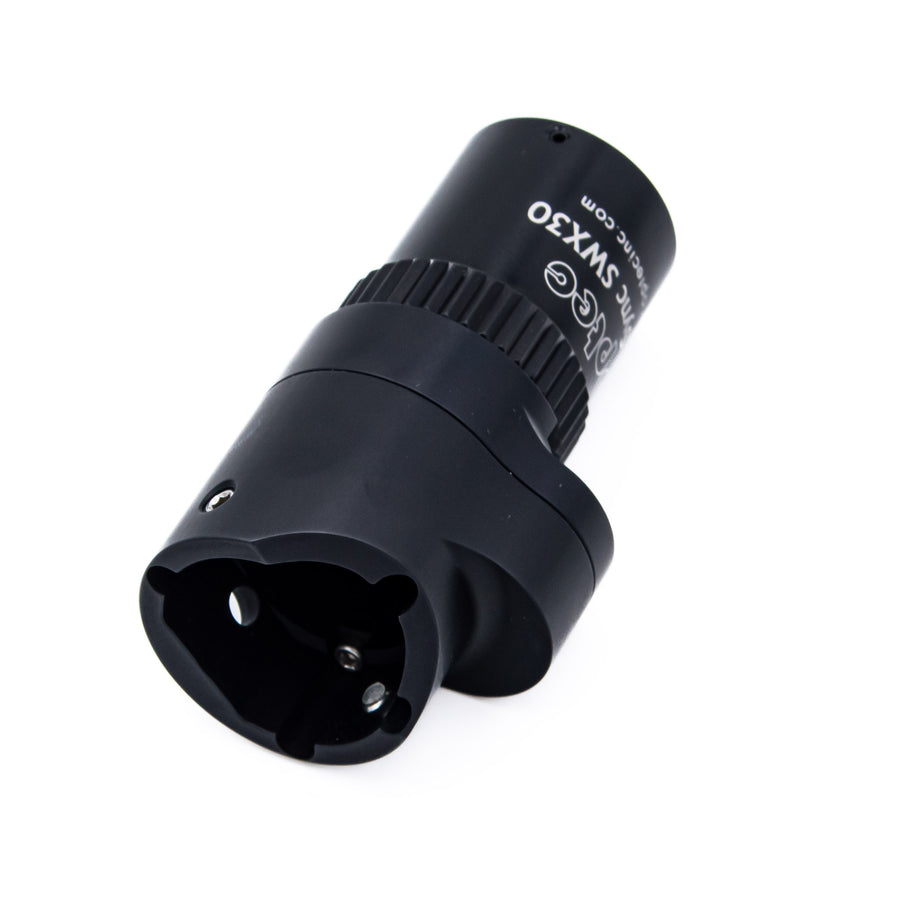

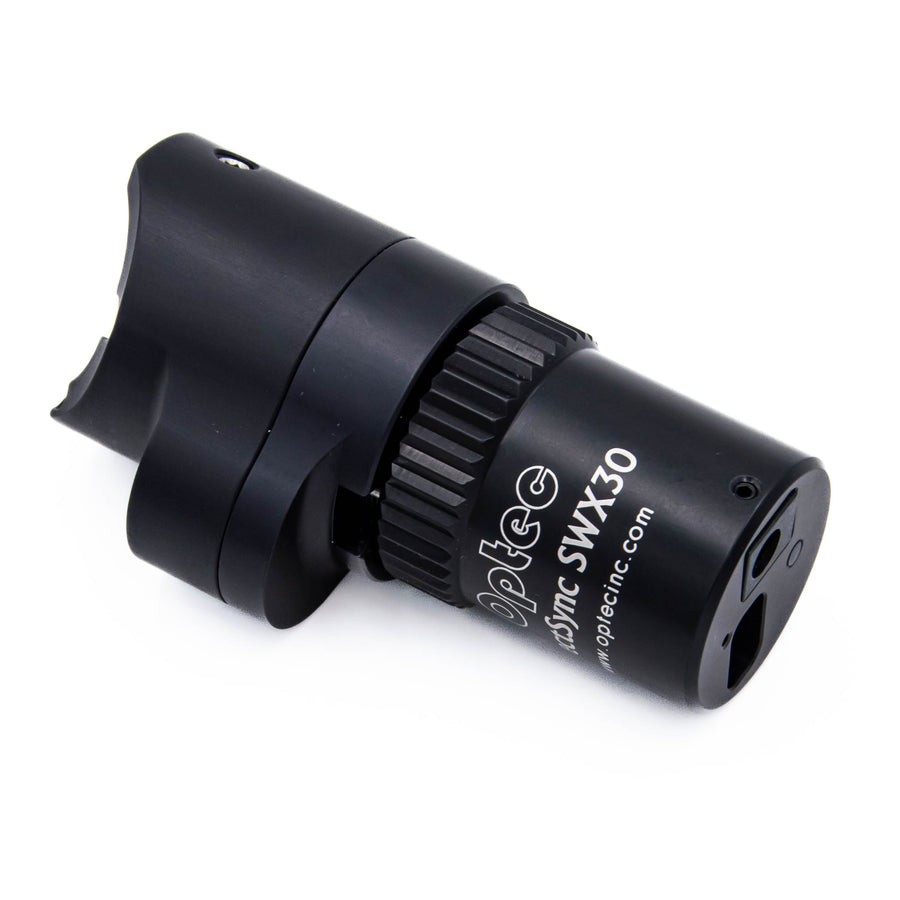

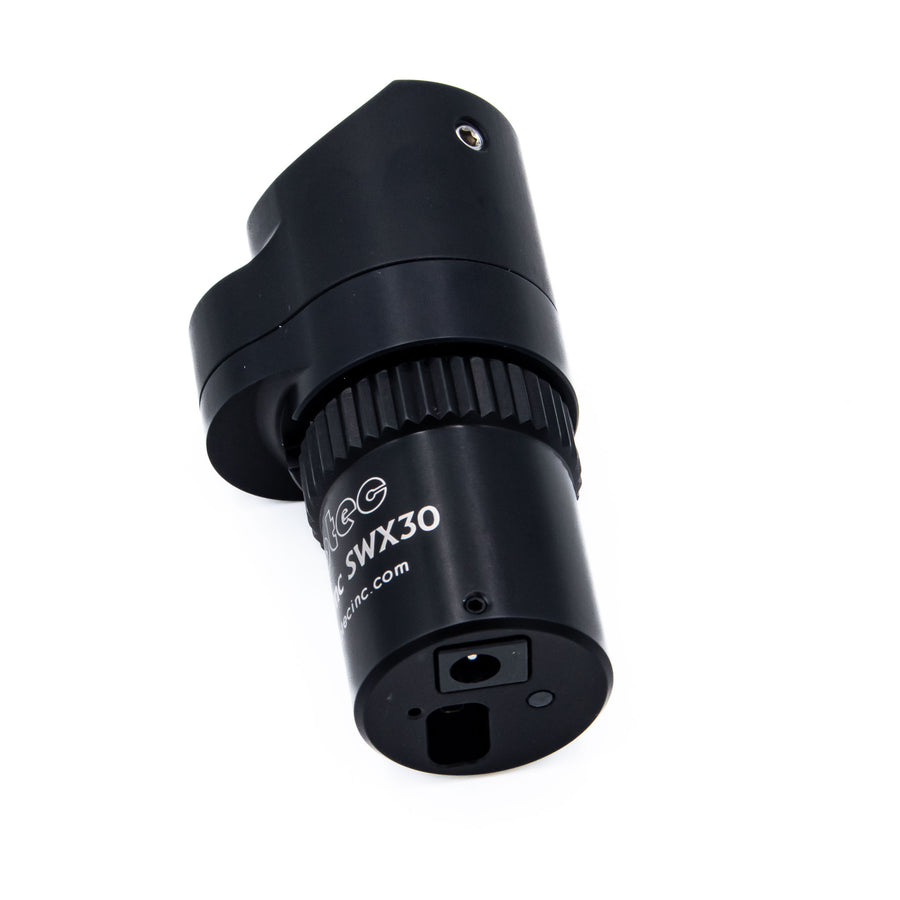

#19988- ThirdLynx DirectSync SWX30
Optec's DirectSync SWX30 motor was developed specifically for the SkyWatcher 3-inch focusers and features our ThirdLynx control circuit.
Similar to our original DirectSync SW30 motors with the same Best-In-Class clutch mechanism, the new DirectSync SWX30 includes an all-new integrated control circuit built into the focus motor end cap.
No external controller is required .
USB connectivity and fully compatible with all existing FocusLynx software
- Skywatcher Esprit 100 focuser,
- Skywatcher Esprit 120 focuser,
- Skywatcher Esprit 150 focuser.
- Motor Housing Width: 1.9" (48mm)
- Overall Length: 3.55" (90mm)
- Weight: 6.0 oz (165 g)
- Step Resolution: 1.1 micron per step
- Stepper Motor: Bi-polar NPM 15-ohm with 1:25 gearhead
- Controller: Integrated ThirdLynx
- Connectivity: USB 2.0 A-B cable (included)
- Temperature Sensor: Analog Devices ADT7302 embedded
- Input Power: 12-volts DC, 2.5 x 5.5mm plug
- Current Draw: Maximum draw approx. 350mA

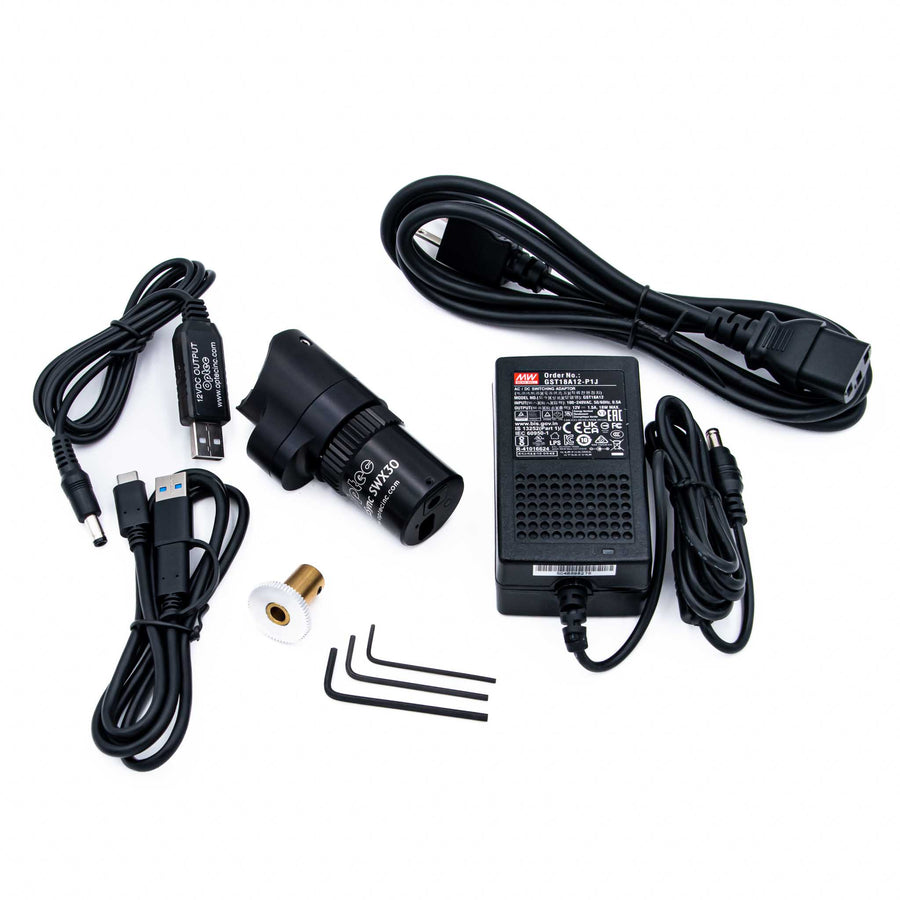

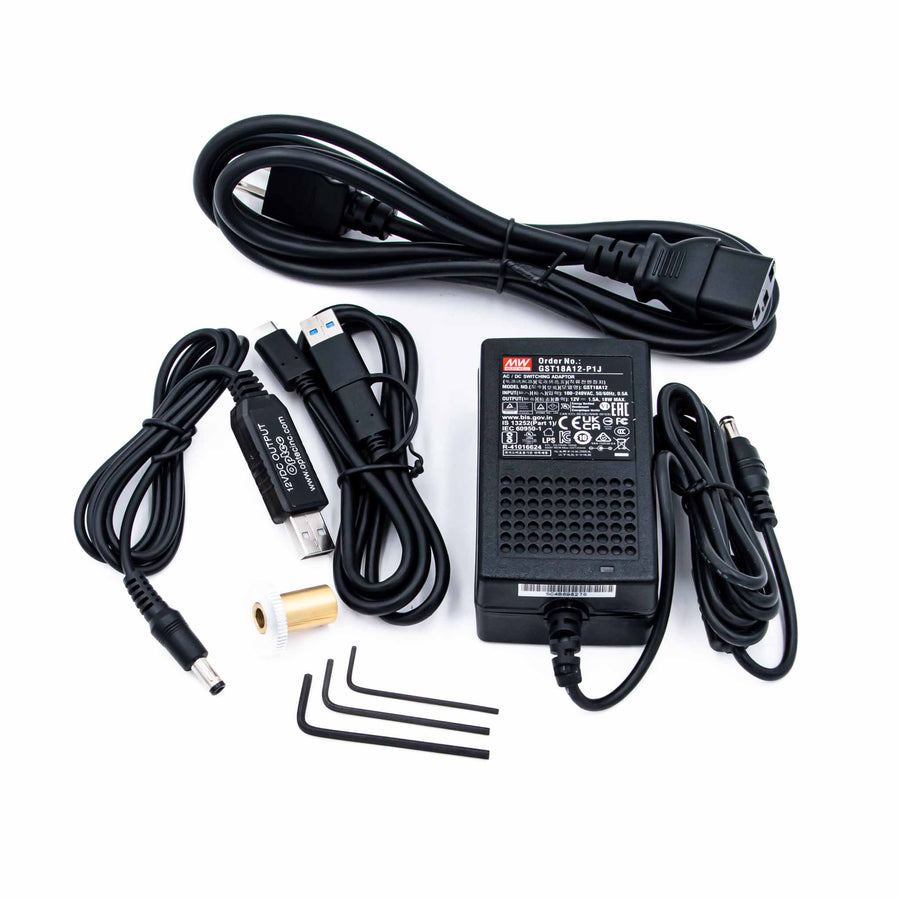

- 17070 - USB Power Converter cable.
- ThirdLynx Motor
- 3’ USB Cable
- 15’ USB Cable
- Allen Wrench
- Power Supply with cord
ThirdLynx controllers are fully compatible with FocusLynx dual-focus control hubs making the FTX40 compatible with all ASCOM, X2, and INDI software.
-
Shipping Details
- Variant: Default Title
- SKU: 19988
- Weight: 2.0 lb
- Package Dimensions : 10 X 8 X 6
- Harmonized Code: 9005.80
- Product Type: Focuser
- Brand: Optec, Inc.
