#19978- ThirdLynx DirectSync SVX30

$495.00

Quantity
Out of Stock
Available for backorder, you can contact Optec directly at sales@optecinc.com to reserve a backordered item or order here

NEW DESIGN - LOWER PRICE!

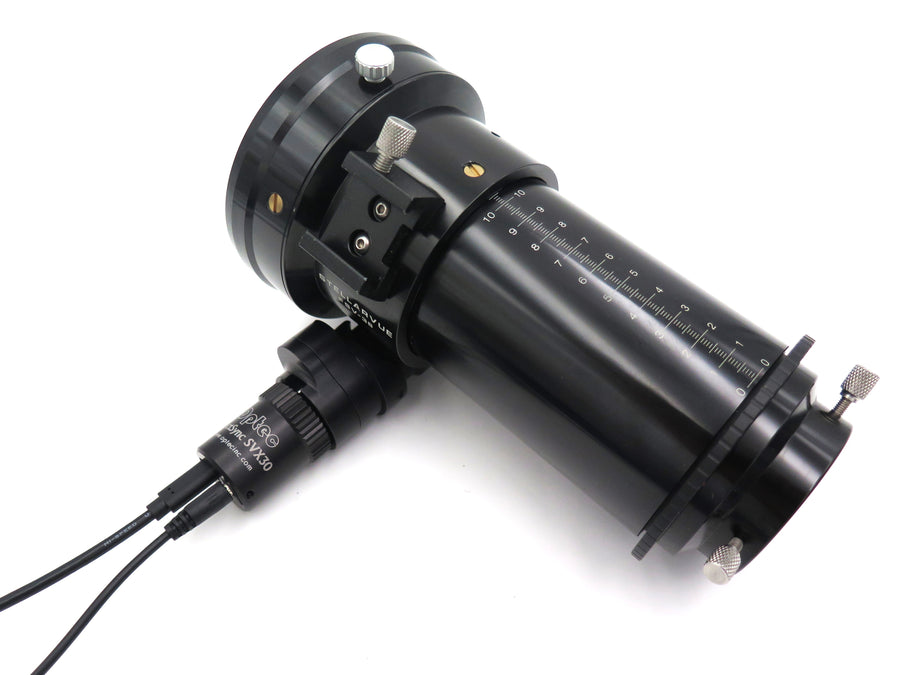

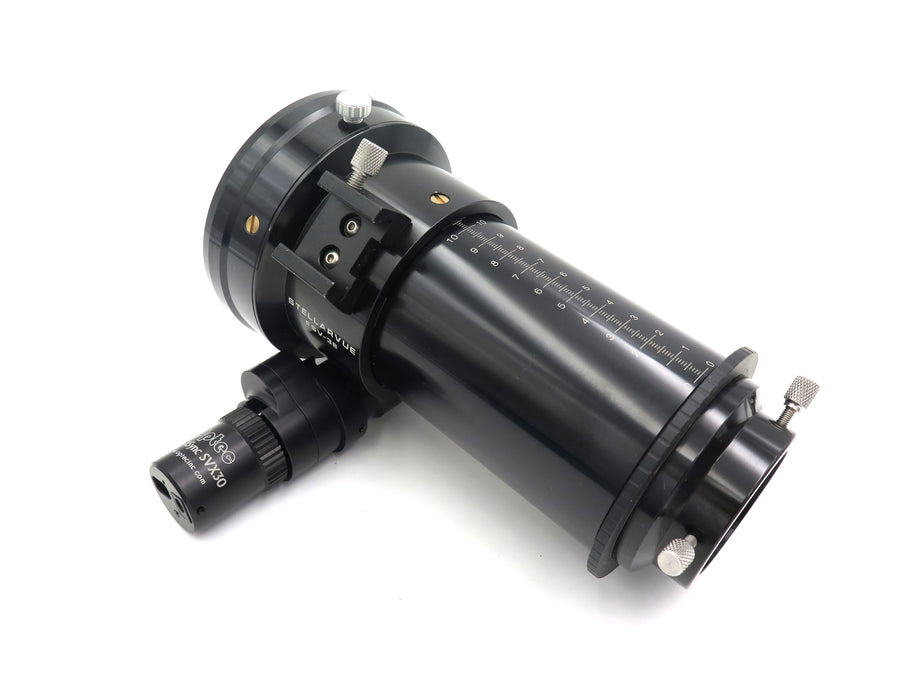

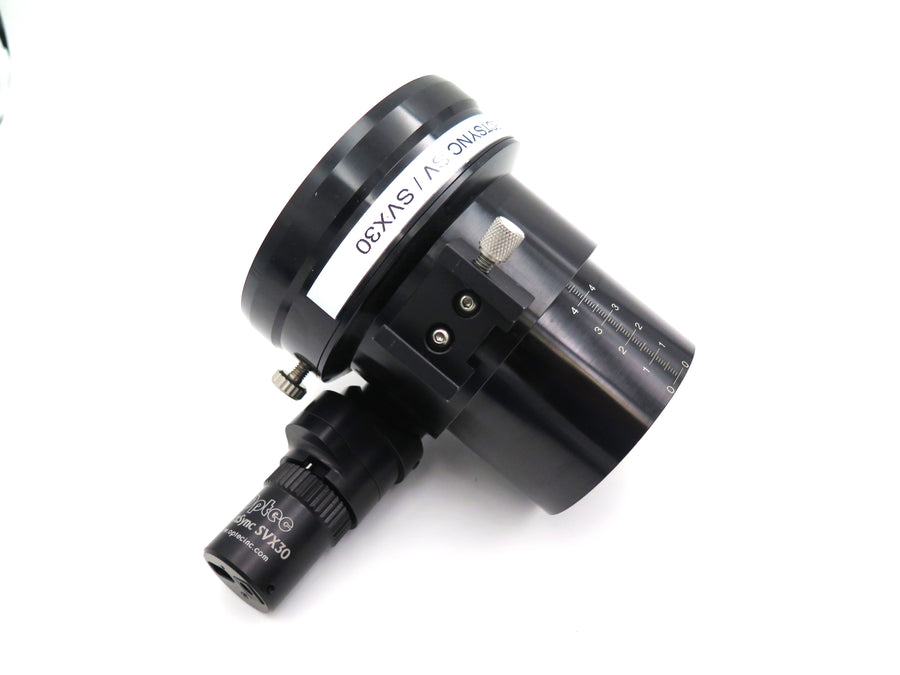

Optec's 3rd generation DirectSync SVX30 motor was developed specifically for the Stellarvue FSV-3B series focusers and features our latest ThirdLynx control circuit.

SVX30 also fits a variety of Stellarvue focusers including SVF25 and SVF30 3-inch focuser. Similar to our original DirectSync SV30 motors with the same Best-In-Class clutch mechanism, the new DirectSync SVX30 includes an all-new integrated control circuit built into the focus motor end cap.

No external controller is required .


USB connectivity and fully compatible with all existing FocusLynx software.

Now with USB-C interface. Includes USB to 12VDC cable.

Optional 12VDC desktop type power supply with 2.1 x 5.5mm barrel plug available.

https://optecinc.us/products/17064-2-1

  • Stellarvue SVF25 2-1/2-inch focuser,
  • Stellarvue SVF30 3-inch focuser,
  • Stellarvue -25SV 2-1/2-inch focuser,
  • Stellarvue -3SV 3-inch focuser,
  • NOTE: New Stellarvue scopes with SV-F25B focuser require #19976 motor.
  • Many Stellarvue model telescopes including
  • SV080ST-25SV,
  • SV80-3SV,
  • SVR102T-25SV 102mm Raptor


  • Also fits many SharpStar focuser with D-shaped pinion block.
  • Motor Housing Width: 1.9" (48mm),
  • Overall Length: 3.2" (81.3mm),
  • Weight: 6.2oz (175 g),
  • Step Resolution: approximately 1.1 micron per step,
  • Stepper Motor: Bi-polar NPM 15-ohm with 1:25 gearhead,
  • Controller: Integrated 3rd generation ThirdLynx,
  • Connectivity: USB A-C cable 1m (3-ft) included in package,
  • Tools Required: 1/16" and 7/64" hex keys (included)
  • #17070 - USB Power Converter cable included in package
  • Temperature Sensor: Analog Devices ADT7302 embedded
  • Current Draw: Maximum draw approx. 350mA
  • #17064-2.1 12VDC Power supply with wall cord.
  • #19799 QuickSync/DirectSync clutch lock for permanent remote installations.

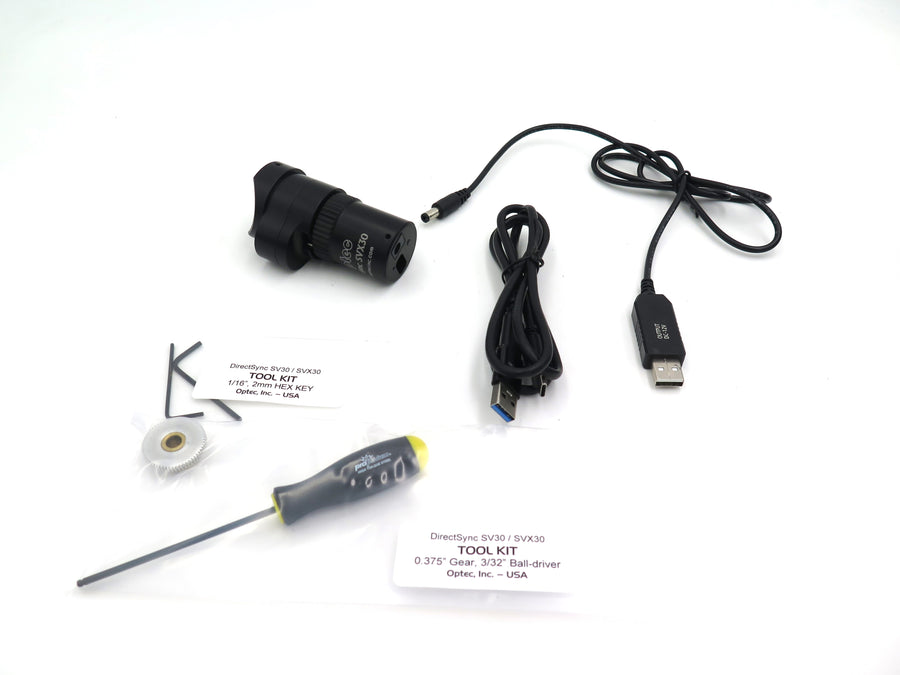

  • ThirdLynx SVX30 Motor,
  • 1m (3-ft) USB A-C Cable,
  • #17070 - USB Power Converter cable
  • Allen hex wrench tool kit with 3/32" ball driver,
  • 60-tooth gear to fit pinion shaft.

ThirdLynx controllers are fully compatible with FocusLynx dual-focus control hubs making the SVX30 compatible with all ASCOM, X2, and INDI software.

FocusLynx download page
