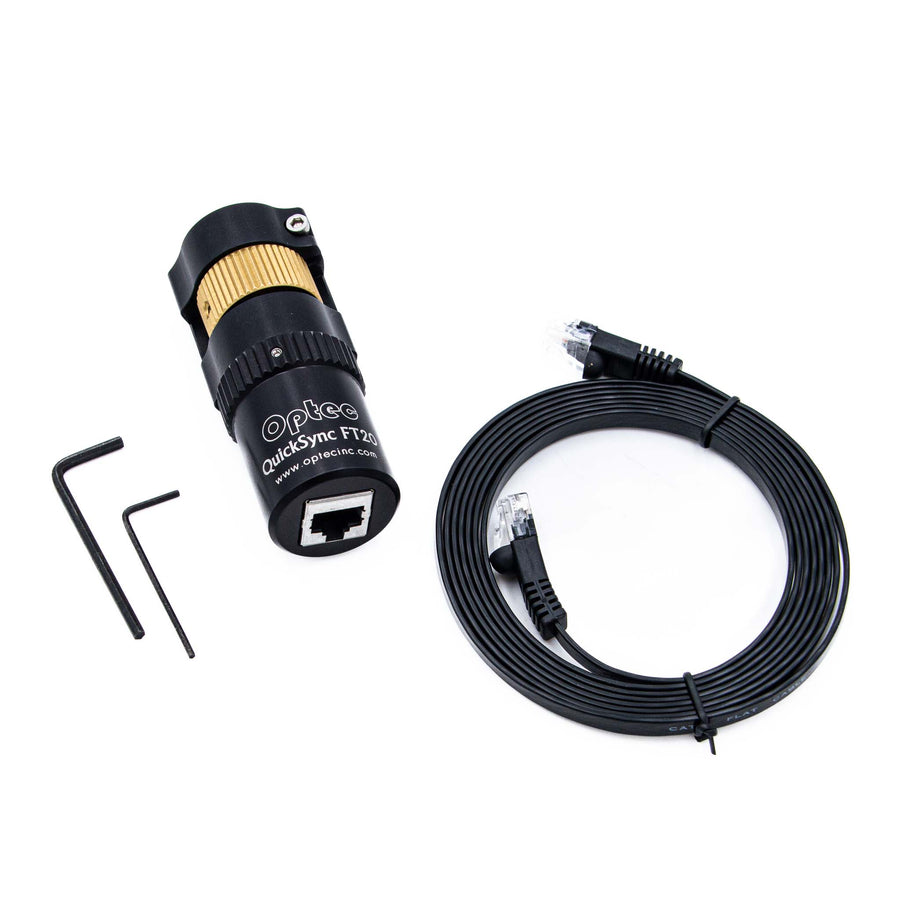

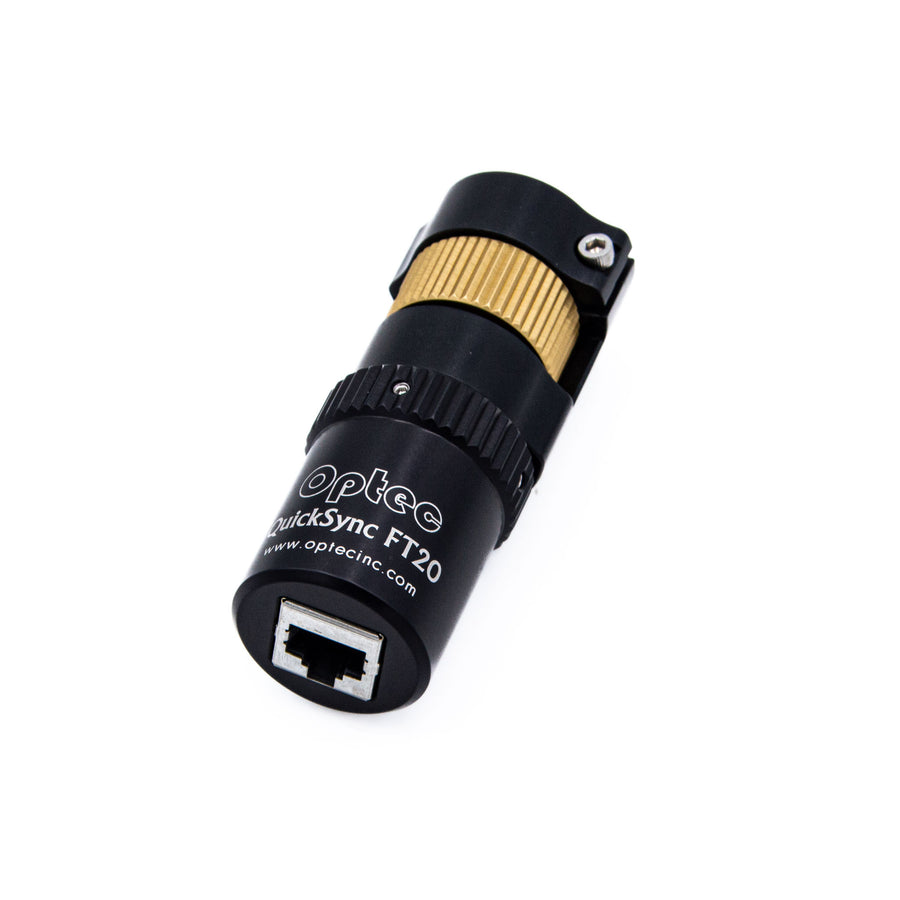

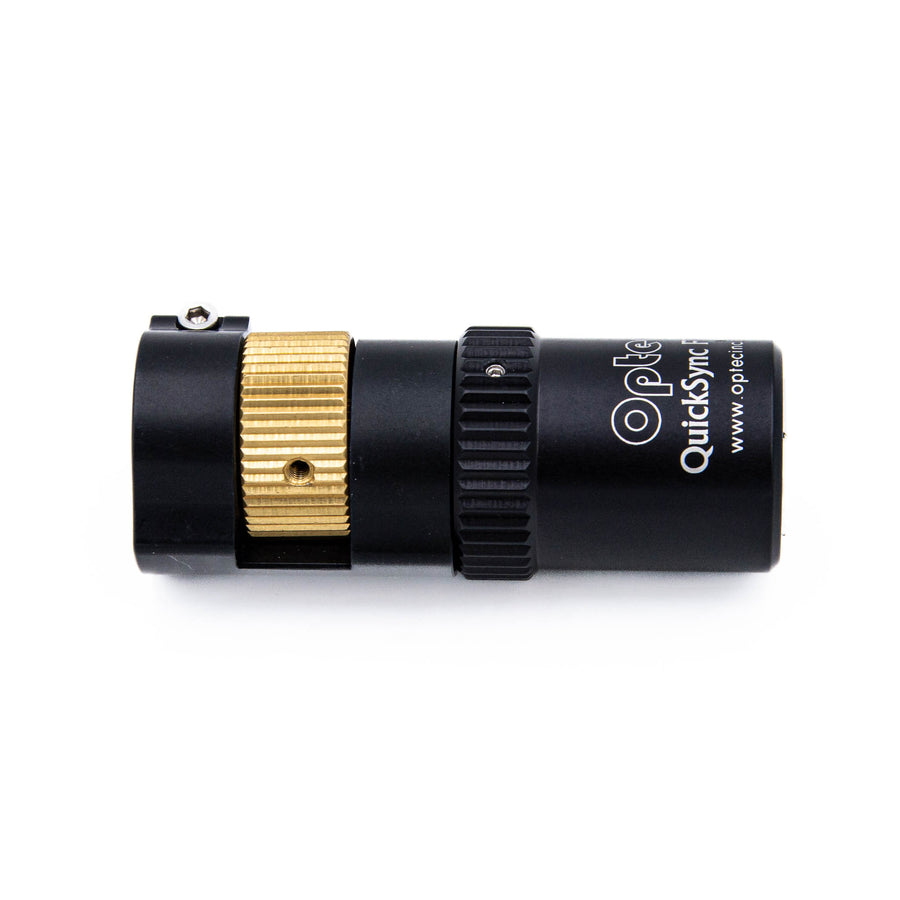

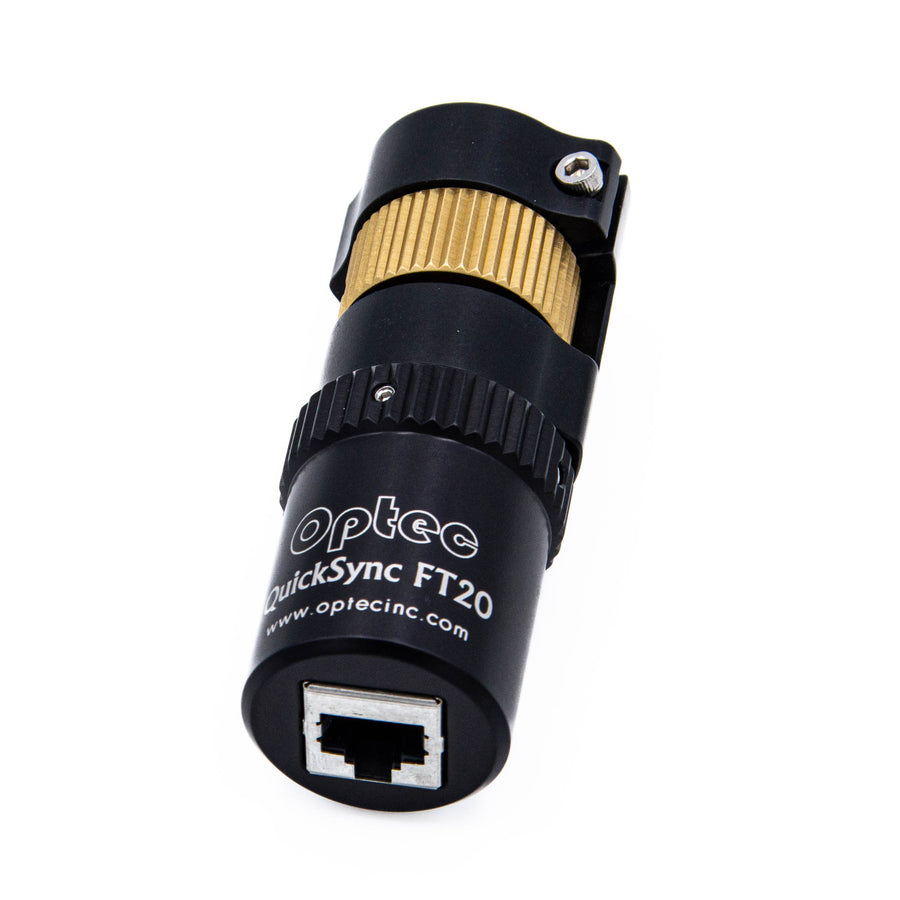

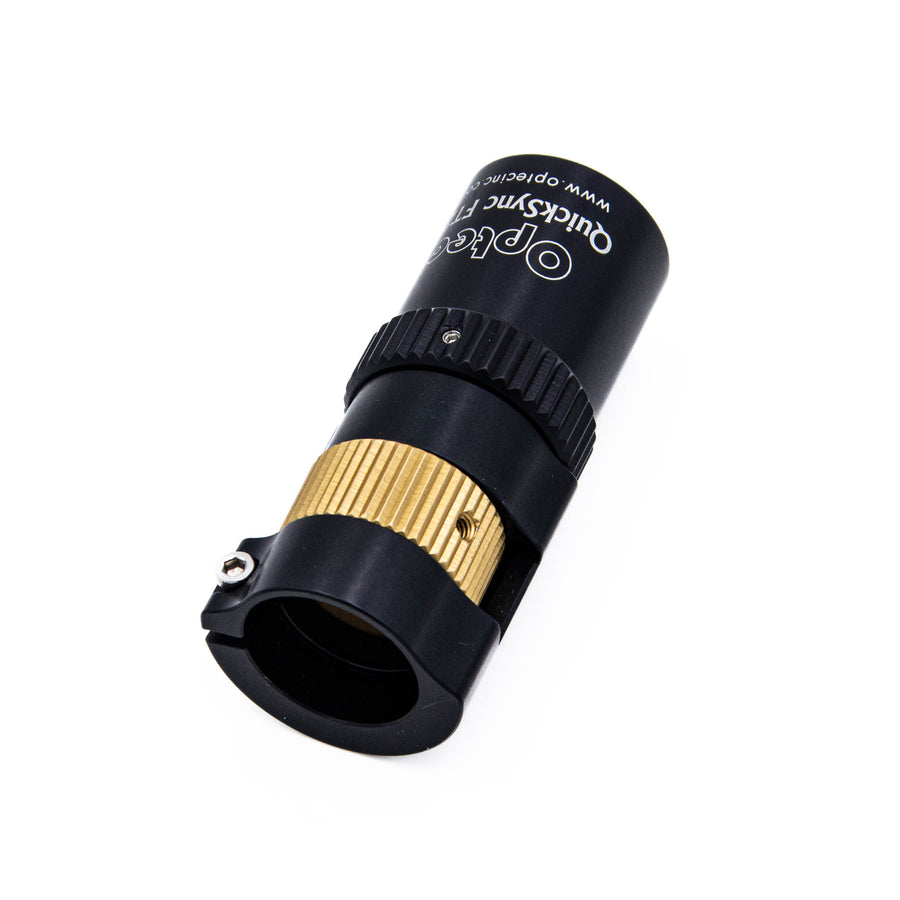

#19771 - FocusLynx QuickSync FT20 Motor for Feathertouch FTF20 series
#19771 - QuickSync FT20 Motor for Feathertouch FTF20 series Crayford style focuser and FeatherTouch Micro focuser retrofits
The QuickSync FT20 motor with built-in clutch mechanism and temperature sensor allows both manual and motorized control with a simple twist of the motor housing.
Designed especially for the FeatherTouch FTF20 series manual focusers, the FT20 can also be used with the FeatherTouch Micro Focuser for SCT's. Simple installation and elegant design with full compatibility to the FocusLynx Control Hub makes QuickSync the very best choice for motorizing a FeatherTouch.
This version requires the external Optec FocusLynx controller . If you would prefer the fully integrated solution consider the ThirdLynx model .
For more add on accessories including the FocusLynx Controller, Hand Controller, and WiFi see the FocusLynx Accessories .
- FeatherTouch FTF2008, FTF2015, FTF2020, FTF2025 focusers,
- FeatherTouch FTM series Micros,
- FeatherTouch MPA series Micro Pinion Assembly,
- Televue-85 f/7 APO Refractor focuser,
- TeleVue TV-NP101is, TV-NP127is focusers.
-
- NOTE: 2-inch FeatherTouch rack-and-pinion focusers require the FT20R motor.
- Material: 6061 aluminum, anodized black with gold knob,
- Length: 6.3" (160mm)
- Width: 3.2" (81.4mm)
- Weight: 6.4 oz (180 g)
- Tools Required: 1/16" and 7/64" hex keys (included)
- Motor Cable: Standard Cat-5e or Cat-6 (6-ft. length included)
- Connection to FocusLynx: Focuser 1 or Focuser 2 port- RJ45 socket
FocusLynx controllers are usable with Alpaca, ASCOM, X2, and INDI software.
-
Shipping Details
- Variant: Default Title
- SKU: 19771
- Weight: 0.6 lb
- Package Dimensions : 7 X 7 X 5
- Harmonized Code: 9005.80
- Product Type: Focuser Accessory
- Brand: Optec, Inc.
